Ceramic Insert Grades for HRSAs

For manufacturers seeking solutions to unpredictable tool life and slow rough-machining speeds when working with heat-resistant superalloys (HRSA), Seco Tools has expanded its line of productive Secomax CW100 ceramic insert grade. Featuring new geometries for whisker-reinforced ceramic, this line of ceramic solutions offers enhanced performance for challenging aerospace, oil and gas and power generation applications involving Inconel 718, Hastelloy, Waspaloy, MAR, Nimonic, Rene, Udimet and other HRSAs.

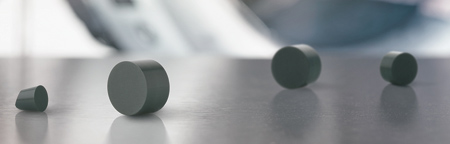

The CW100 grade expansion encompasses four new round insert formats with two geometries, E-01020 and T-01020, and four grooving insert geometries with widths of 3.175 mm (0.125"), 6.35 mm (0.25") and 7.925 mm (0.312"). An aluminum-oxide-based grade with silicon-carbide whiskers (Al2O3-SiC), the Secomax CW100 grade not only boosts machining speeds in advanced HRSA materials, but also helps ensure stable and predictable tool life for the lowest possible cost per part due to the silicon-carbide whiskers, which use optimized micro geometries for enhance ceramic wear resistance and strength.

For more information contact:

Seco Tools LLC

2805 Bellingham Drive

Troy, MI 48083
