Micro Brakes for Small Precision Equipment Applications
July 1, 2019
112 Model Electromagnetic Micro-Brakes from Miki Pulley are designed to be a compact, high performance braking solution for small, precise motion control applications.

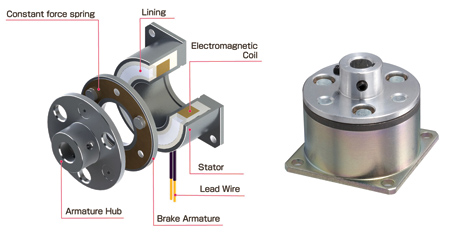

Miki Pulley's ultra-compact brake design is engineered to provide fast response in high-torque, demanding applications. The design features a stator with integrated mounting flange, proprietary composite friction liner and armature complete with ring plate spring and hub.
These micro brakes halt rotation mechanically by utilizing electro-magnetic field to create mechanical friction. With fast response, the brake's armature engages the stator when the coil is energized. A constant-force plate spring transfers torque to the rotating brake body halting all motion.
Additional features include: quiet operation, high holding torque for its size, space saving design configuration, long service life, and stable and reliable braking power. These micro brakes require no maintenance. They are available in three armature assembly options depending on application requirements.
112 Model micro brake specification range based on model selected:
- Brake torque: 0.295 ft-lbs. - 1.770 ft-lbs. (0.4 Nm - 2.4 Nm)
- Backlash: Zero
- Ambient temperature: 14 °F ~ 104 °F; (-10 °C ~ 40 °C).
For more information contact:
Miki Pulley US
13200 6th Avenue North
Plymouth, MN 55441
800-533-1731
sales@mikipulley-us.com
www.mikipulley-us.com
