New Advanced Tool Presetter
September 1, 2014

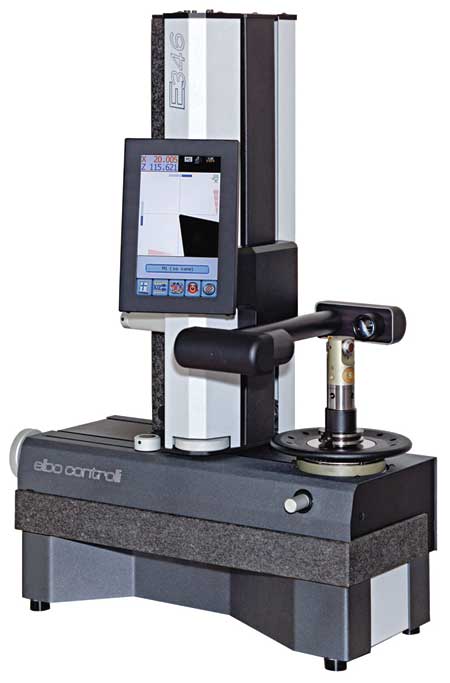

Elbo Controlli, a leader in presetting solutions distributed through Koma Precision, Inc., is continuing its advancement into the tool management market with a new generation of tool presetters. The newly designed E346 is tailored specifically to customer's requirements of a powerful tool measuring system. This unit has a radial travel capacity of an X-axis of 14.2"(360 mm) and a Z-axis of 18.1" (460 mm).
These tool presetters are designed with a base and column of natural granite that guarantees the least thermal expansion of all construction materials.
Interchangeable rotating spindle-holders with manual mechanical braking of the spindle-holders rotation are available such as: CAT/ISO/BT, HSK, Capto, KM, VDI and etc.
The vision system for tool measuring includes a TFT 9" color touch screen with 110 mm x 200 mm image size and 25X magnification. The unit comes with a standard cutting edge inspection feature to get a crystal clear image of the condition of the cutting edge before measuring the tool.
"The Elbo Controlli presetters are known for their ease of use and hence every operator can utilize the unit quickly," said a company spokesperson.
The presetter comes standard with the newly developed post processing software including 50 postprocessors that translate measured data into CNC code. This data can then be put on a USB stick and tooling data can be inserted into the machine's CNC control.
For more information contact:
Koma Precision, Inc.
20 Thompson Road
East Windsor, CT 06088
800-249-KOMA (5662)
860-627-7059
info@komaprecision.com
www.komaprecision.com
