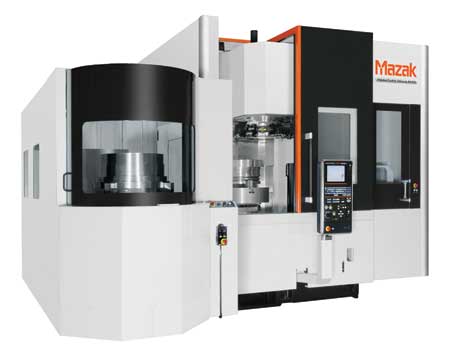

The MEGATURN NEXUS 900M combines turning and secondary machining operations to efficiently cut large cast iron and steel workpieces, such as those commonly processed in the construction machinery, industrial machinery and jet engine manufacturing sectors.
The MEGATURN NEXUS 900M vertical turning center accommodates a maximum workpiece size of 36.2" x 31.5" and utilizes Mazak's MX Hybrid Roller Guide System to deliver durability. The new way system is designed for vibration dampening, and handles higher load capacities and eliminates tramp oil in the coolant by utilizing a greener grease-based lubrication system.
For heavy-duty machining, the MEGATURN NEXUS 900M employs a rigid 40-HP, 1,250-RPM integrated main drive motor/spindle that generates 2,696 ft. lbs. of torque. Additionally, the machine carries maximum part loads of 6,614 lbs. (including the chuck).
Mazak designed the MEGATURN NEXUS 900M with a 12-position drum turret for rapid tool indexing. The turret is rigidly clamped by 16.7 tons of force on a 12.99" high-index coupling, allowing for high performance machining and intermittent cutting. The machine delivers a rotary tool spindle speed of 4,000 RPM and 70.2 ft. lbs. of torque. It also removes material at a rate of 58.6 in3/min.
The MEGATURN NEXUS 900M comes standard with Mazak's Tool Eye, an automatic tool-presetting system. By bringing the tool tip into contact with the Tool Eye, offset of tool nose position, tool measurement and data registration are done automatically for accurate and fast part setup. The Tool Eye can also be programmed to monitor tool wear on a periodic basis.
The MEGATURN NEXUS 900M is equipped with Mazak's MAXTRIX NEXUS 2 CNC control that simplifies multitasking operations for parts requiring off-center-line machining and angled drilling, milling or tapping. The control features EIA/ISO and conversational programming to offer versatility and user-friendly operation.
Manufacturers can integrate the MEGATURN NEXUS 900M with an optional two-pallet changer and further boost its productivity through continuous machining.
