Enhanced Productivity for Large-Part Machining

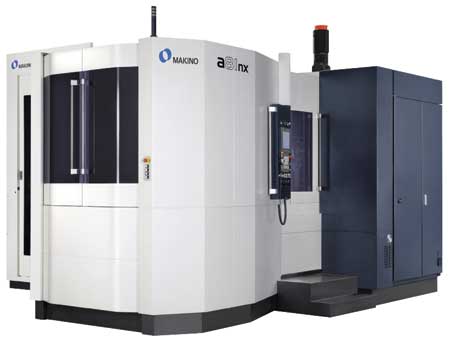

Makino has introduced the a81nx horizontal machining center (HMC). According to the company, the a81nx extends the capabilities of its 1-series predecessor with expanded machining capacity, improved rigidity and stability, improved productivity and enhanced reliability.

"The a81nx builds on the success of the original a81 platform and sets a new standard for large part machining performance," said Dave Ward, Horizontal Product Line Manager at Makino. "There have been enhancements made to the bed and column castings of the machine, expansions in the tool magazine and Y-axis travels, spindle design improvements for faster acceleration and deceleration times, and a host of additional features and advancements to improve ergonomics, maintenance and machine uptime."

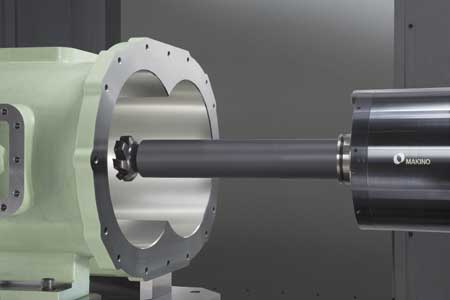

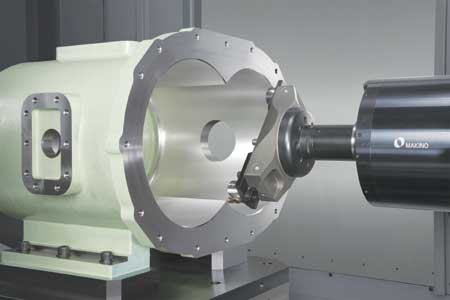

When it comes to large part machining, a limited work zone can hinder even the most efficient cutting processes and technologies. This is the reason why the a81nx features a 100 mm extension of the Y-axis column, bringing full-axis travels along the X, Y and Z axes to 35.4", 35.4" and 40.2" (900 mm, 900 mm and 1,020 mm). The increased Y-axis travel is especially beneficial for automotive parts such as engine blocks and cylinder heads, where the critical mating surfaces require feed-on/feed-off milling passes for optimal sealing.

Large parts also commonly contain a substantial volume of features that can range greatly in size, requiring quick accessibility to diverse tool types and sizes. The a81nx automatic tool changer (ATC) is designed to handle larger-diameter, longer and heavier tooling. "This large tool capacity ensures that manufacturers are able to efficiently machine a variety of large part features," said a company spokesperson.

For improved speed and productivity, the a81nx is standardly equipped with a 10,000 RPM spindle that affords 305 Nm of duty-rated torque and 45 kW of extended duty power (26 kW of continuous output). Duty-rated power levels have increased 25% over the previous model. "Such an enhancement dramatically reduces spindle acceleration and deceleration times, saving 20 to 30% in tapping processes," said the spokesperson.

An optional 8,000 RPM, high-torque spindle configuration is also available for manufacturers working with hard metals. With 553 Nm of duty-rated torque and 37 kW of continuous output, this spindle option delivers 19% more continuous power output over the previous high-torque spindle, enabling manufacturers to take on more aggressive cutting conditions in ferrous and difficult-to-machine materials.

Other advanced productivity features of the a81nx include a new GI servo control mode that is designed to reduce pocketing times for aluminum billet applications, and a new chain-type, 80 tool capacity automatic tool change magazine for reduced tool-seek times.

The a81nx bed, column and table castings feature enhanced build qualities, including an increased step height between the front and rear X-axis linear guide for improved strength and higher acceleration. For greater stiffness and reliability in higher load capacities, the machine uses roller-type linear motion guides. The a81nx B-axis table is available in two configurations - index and NC rotary. Each configuration has been redesigned for improved rigidity, including a larger curvic coupling diameter within the index table and the use of a three-roller-type bearing in the NC rotary table for increased rigidity and thrust support.

"With millions of tool changes occurring during the life of a machine, the reliability of the ATC is crucial," said the spokesperson. "The nx-Series machines feature a high-speed servo-driven ball screw that actuates the ATC shutter door, improving responsiveness, ease of set-up and maintenance. The servo axis also reduces exposure of the ATC to the work envelope. The additions of taper-cleaning air-blow station and tool-seat detection ensure that all tools are clean and properly seated in the spindle. The net result is improved reliability and cleaner ATC environments."

The ergonomically friendly, L-shaped door design of the a81nx offers operators greater accessibility to the spindle, enhanced visibility for inspection of the tool or part and coolant drip prevention at the doorway. Additionally, preventive maintenance features on the a81nx have been relocated to a concentrated area on the machine's back panels for easy access.

The safety-guard door on the automatic pallet changer (APC) has an adjustable height for the operation panel and can be moved to match the level of the operator's work platform. A wider APC stocker improves the loading of large fixtures and workpieces and allows easy chip cleaning.

The addition of a tool loading station on all magazines helps improve the ergonomics of handling large, heavy tools. A touch-type human machine interface panel is also available on all 80-tool capacity ATCs or larger, providing an easy way to manage tool data while at the ATC magazine.
