Large Format 2D Laser Cutting

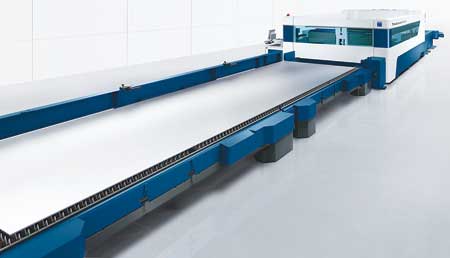

Built especially to handle oversized formats, the TruLaser 8000 laser cuts sheet metal up to 52' in length. "The machine is ideal for companies processing very large parts, or for job shops looking to expand their capacities and range of services," said a company spokesperson. The customer can choose between two pallet concepts and six format sizes ranging from 8' x 20' to 8' x 52'.

An optional AdjustLine function modifies the cutting process using specially developed cutting tables to increase the tolerance for variations in material quality. Also new to the TruLaser 8000 is the optional CoolLine function, which uses water to remove excess heat created while cutting. This is intended to provide better cutting results when dealing with low-grade material. The large format machine also provides for a 0.2" increase in the maximum thickness for mild steel and stainless steel. Fabricators are now able to process this material, up to one inch, using a 6 kW laser. According to the company, the single cutting head strategy makes it possible to cut all material thicknesses without changing out the head.

The machine's control concept has also been enhanced. The machine now features self-explanatory, dialog-based touch command. The ergonomic control panel can be adjusted for the operator's preferences and the lighting conditions in the production area. A cabinet for the machine's accessories is located directly below the control console so that nozzles, lenses and cleaning sets are at hand.

"The high-efficiency cooling unit increases energy utilization, as does the updated laser standby mode," said the spokesperson. "When the TruLaser 8000 suspends cutting, the laser reduces the amount of power it draws by 40%, yet stands ready to resume cutting in just seconds. The LensLine feature automatically checks the condition of the focusing lens, increasing its service life and eliminating unnecessary cleaning cycles. Clearly marked maintenance points, easy access locations and clear maintenance instructions contribute to the speed and ease of service."

For more information contact:

TRUMPF Inc.

Farmington Industrial Park

Farmington, CT 06032

860-255-6000

www.us.trumpf.com
