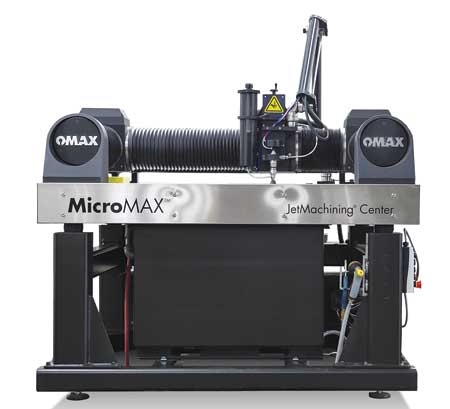

"With the MicroMAX JetMachining Center, the speed, versatility and accuracy of abrasive waterjet technology now applies to the cutting of parts or part features smaller than 300 microns from a wide range of materials, including exotic metals, advanced composites, polymer thermoplastics and glass," said an OMAX spokesperson.
Designed for prototype development and production runs, the MicroMAX is a rigid machine with a table size of 2' 4" by 2' 4" and an X-Y cutting travel of 2' by 2'. It utilizes high-precision linear encoders, vibration isolation and intuitive software control systems to achieve a position repeatability of 2.5 microns (0.0001") and a positioning accuracy of approximately 15 microns (0.0006").
The MicroMAX comes equipped with a high-precision 7/15 Mini MAXJET5i nozzle that features a 0.007" orifice and 0.015" mixing tube combination for cutting delicate, complex patterns. Because it forms a jet stream carrying an extremely fine abrasive, the nozzle can produce a kerf as small as 0.015". The machine also has advanced pressure controls for piercing delicate materials.
"Because waterjet-based machining is a cold cutting process, it eliminates thermal stress in the workpiece, preventing hardening and warping," said the spokesperson."
