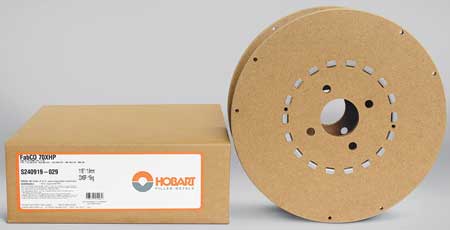

Hobart FabCO 70XHP gas-shielded flux-cored wire features low fume generation and high deposition rates to help improve operator comfort and productivity on applications ranging from structural steel to heavy equipment manufacturing and shipbuilding.
The Hobart FabCO 70XHP gas-shielded flux-cored wire is designed to provide low fume generation rates to help improve operator comfort and high deposition rates. "The new wire complements the FabCO TR-70 and FabCO RXR wires currently offered under the Hobart brand," said a company spokesperson. "Together, the three wires provide a continuum of benefits, with the FabCO 70XHP wire offering the highest level of performance and the lowest visible fume levels. The FabCO TR-70 wire is best suited for all-round performance, while the FabCO RXR wires offers greater performance for welding through mill scale and rust."
The FabCO 70XHP wire is designed for use in applications found in heavy equipment manufacturing, shipbuilding and railroad car maintenance and repair, all of which tend to have enclosed environments where fume reduction is desirable. The wire can also be used to weld non-alloyed and fine grain steels, as well as steel structures.
"The FabCO 70XHp wire features an especially shiny weld bead with an easy-to-remove slag, which not only makes the completed weld more aesthetically pleasing, but it also helps minimize time for clean up," said the spokesperson. "Low spatter levels contribute to the wire's ease of clean up.
"The FabCO 70XHP wire has been designed for both single- and multi-pass welding, and can be used in the flat and horizontal position. Unlike many other AWS E70T-1 electrodes (including the FabCO TR-70 and FabCO RXR), the FabCO 70XHP wire can be used with either 100% CO2 or a 75% argon/25% CO2 shielding gas mixture.
"Weld deposits created by the FabCO 70XHP wire also maintain their toughness even after stress relieving. Specifically, Charpy V-Notch impact values exceed 20 ft. lbs. at -40°F (-40°C) after two hours of stress relief at 1,150°F (620°C). The wire offers tensile strengths in the range of 78,000 to 85,000 PSI, depending on the as-welded or post weld heat treated (PWHT) condition.
The wire is available in 1/16", 5/64" and 3/32" diameters on either 33 lb. spools or 60 lb. coils.
