Linear Actuators for High-Speed Applications with Low Loads
December 1, 2013

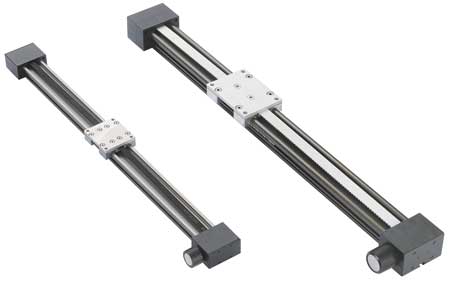

DryLin ZLW belt driven linear actuators are intended to be a low-cost, short lead-time alternative to traditional re-circulating ball bearing systems, according to igus.
"igus DryLin products are engineered with wear-resistant, dry-running, oil-free linear bearings which do not require any maintenance," said a company spokesperson. "These systems are ideal for quickly positioning small to medium loads at high speeds up to 16.4 ft/s (5 m/s), even at stroke lengths up to 9.84 feet (3,000 mm). Larger ZLW-1660 profiles add even higher radial load capabilities up to (2,000 N) 450 lbs. for applications requiring even more robust stages. Since the parts operate as sliding systems as opposed to rolling systems, extremely high accelerations are possible without galling or damaging the guide rails - helping increase machinery throughput.

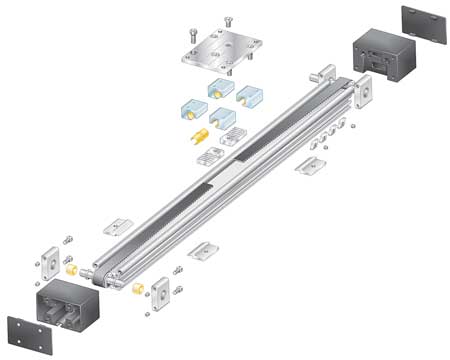

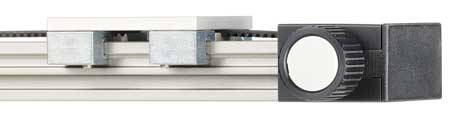

"All igus DryLin ZLW belt driven systems are based on hard-anodized aluminum guide rail profiles, which offer the ideal mating surface for the linear bearing liners. Several linear bearing housings are available, including low-cost zinc-castings, lightweight and corrosion-resistant hard-anodized aluminum machined parts, as well as adjustable versions (WJUME) that allow the flexibility to eliminate or increase the linear bearing clearance, per application requirements.
"Most igus DryLin ZLW belt driven actuators are available as a standard version, offering higher speed and load carrying capabilities, or as a low-cost basic version, offering aggressively lower costs with only slightly limited performance. The standard versions use steel-reinforced polyurethane geared belts and several machined metal components versus the low-cost basic version which use glass-filled neoprene belts and rely on more injection-molded plastic components to help lower the costs."
igus offers short lead times for most DryLin ZLW belt driven systems from its RI facility. Fully customizable lengths are available along with CAD files and on-site technical support for any application.
For more information contact:
igus Inc.
P.O. Box 14349
East Providence, RI 02914
800-521-2747 / 401-438-2200
sales@igus.com
www.igus.com
