Scanning Laser Micrometer

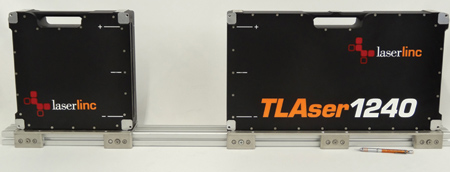

LaserLinc, Inc., a U.S. manufacturer of technology for precision measurement of diameter, ovality, wall thickness, concentricity, eccentricity and inside diameter, has introduced the TLAser1240 scanning laser micrometer. The TLAser1240 is a new single-axis diameter gauge for the inspection of large products, quickly and accurately without contact.

The TLAser1240 micrometer measures diameter, height or width up to 9.1" (231 mm) and is designed for use in industries such as metal, wire and cable, glass and plastics and rubber extrusion. For metals and glass, the transmitter and receiver components can be separated to keep away from moving product or equipment, as well as heat sources.

Features of the TLAser1240 include:

  • Measure any material, even if transparent
  • Fast inspection - 1,600 measurements per second. At 50 feet/minute, a measurement is made every .007" of product for virtual 100% coverage
  • Repeatability (two second) - ±.00008" [±2 µm]
  • Separate transmitter, receiver and rigid mounting rail - mount in any orientation and out of the way of moving product and equipment
  • Use two units together to get dual-axis (XY) inspection, or three for three-axis diameter and accurate ovality measurement
  • Integrate with the Total Vu HMI using a standard Ethernet connection for complete product and process monitoring and control
  • Integrate with line control PLCs using the SmartLinc processor and industrial communications such as EtherNet/IP
  • Four-year warranty.

"Prior to the TLAser1240, measuring large parts was a difficult task. This micrometer solves this problem with both speed and precision," said Jeff Kohler, Vice President of LaserLinc.

For more information contact:

LaserLinc Inc.

777 Zapata Dr.

Fairborn, OH 45324
