Portable Laser Marker

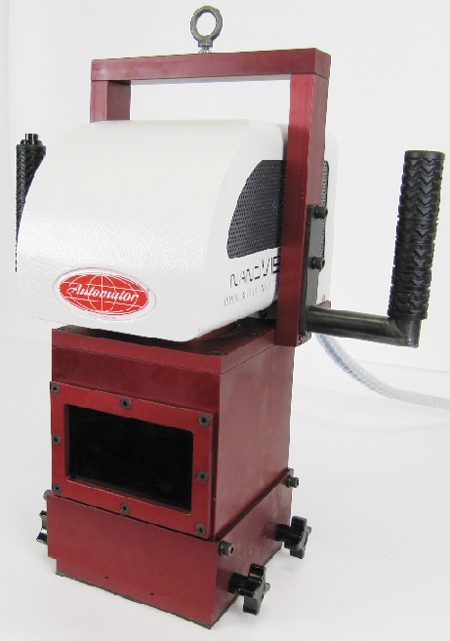

Automator offers its VIS-P portable laser marker designed for marking plastics, metals and alloys, as well as anodized, painted surfaces.

The VIS-P comes standard with laser source options that include IVO4, 10-watt, 20-watt, 30-watt and 40-watt. With two laser handles and a snorkel that provides an accurate and safe laser beam up to 3', the VIS-P allows for marking large, oversized components on the spot.

This compact laser system is air cooled for economical operation. The VIS-P laser comes standard with a marking area of 110 x 110 mm (4.33" x 4.33"). Alternative size marking areas are available options. Also included in the VISP laser package is the galvometric head, laser source, electronics and external power supply.

The VIS-P features multilingual Genius software. Marking details such as serial numbers, straight line and arc text with full TIF capability, basic geometrical figures, shift and date codes, bar codes and 2D/Data matrix are standard capabilities for complete traceability. Logos and pictures are added to marking files by importing .dxf, .wmf and .plt formats. Options are available for automated data entry with bar code scanners.

As an option, the VIS-P can operate without a PC using the MarkAlone platform. The VIS-P also accepts signals from PLC digital I/O for diagnostic output and control input, as well as Ethernet or serial connections.

For more information contact:

Automator America Inc.

101B Business Place

Ashville, OH 43103

704-983-0157

sales@automator.com

www.automator.com
