Milling Cutter for Heavy Cuts

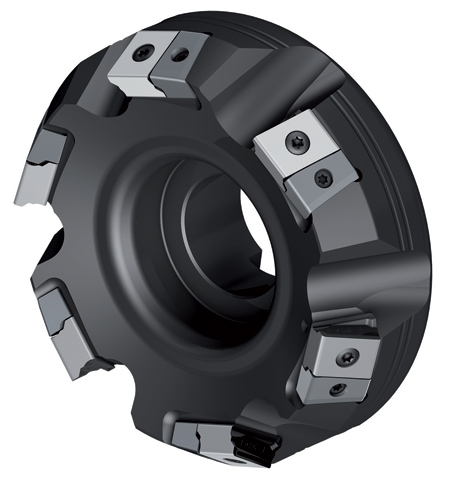

Walter BLAXX M3016 heavy duty milling cutter

"Walter has introduced the Walter BLAXX M3016, a heavy duty milling cutter with the ruggedness and power needed to make heavy cuts seem easy," said a company spokesperson. The M3016 tackles ISO material groups P, M and K and difficult applications such as machining frames made from cast iron for large molds, or housings for wind energy rotor hubs.

In addition, the M3016, which is aimed at milling and boring machines, delivers enhanced process reliability even with older machines. These and other advantages derive from a number of factors, such as the M3016's carbide axial stop for high process reliability. This works as an emergency cutting edge to protect the clamping screw and insert pocket from damage, reducing tooling costs in the process. "The M3016 uses four grades of Walter's Tiger·tec Silver cutting tool material - WKP25S, WKP35S (CVD) and WKK25S, WSP45S (PVD) which boosts both tool life and process reliability, while also reducing cutting material costs," said the spokesperson.

The M3016 is available with an approach angle of 60° for diameter range 4.9 to 12.4 in. (125-315 mm). One insert style simplifies administrative tasks allowing both time and money to be saved. Additional diameters and lead angles can be obtained by ordering through Walter Xpress - the company's short lead time service for specials.

For more information contact:

Walter USA, LLC

N22 W23855 Ridgeview Pkwy. West

Waukesha, WI 53188

800-945-5554

www.walter-tools.com/us
