4-Axis Grinding Center with Automated Loading

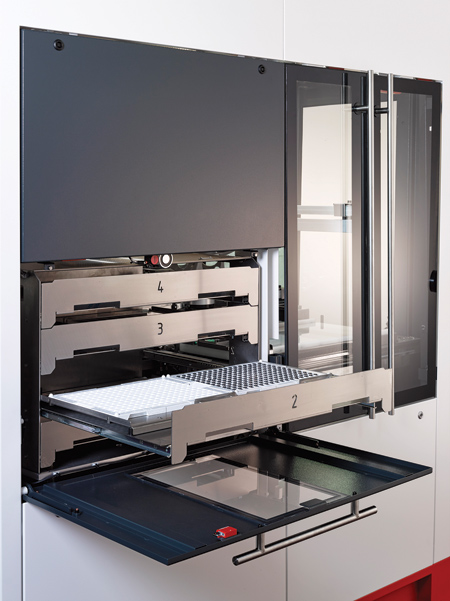

Tray storage system

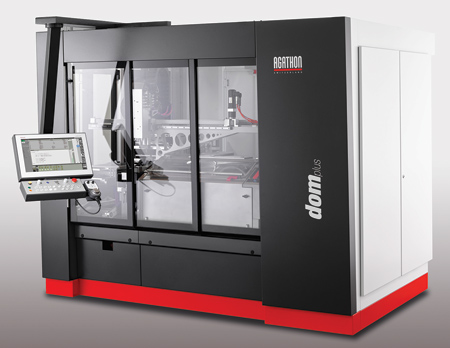

Dom Plus 4-axis grinding center

Agathon AG, manufacturer of grinding machines, offers the new Dom Plus 4-axis grinding center equipped with automated loading capacity for high production grinding of indexable inserts on the periphery with two K-Lands through integrated re-clamping.

With up to 12 trays capacity for high production autonomy, the new 180° swiveling loading gripper allows flexible handling processes and grinding for a second chamfer.

Other Dom Plus features include powerful, maintenance free direct drives for the X-, Y- and C-axes, short transfers due to agile handling and internal dressing and fast product changeover facilitated by offline programming and graphic simulation.

"In addition, ease of use is attained through excellent visibility and accessibility due to simplified, ergonomic design; unique, domain specific programming languages for indexable inserts; and consistent Agathon operating philosophy and software," said a company spokesperson. "The external design is clean, incorporating excellent visibility and rooftop mounting for peripherals."

For additional information: http://www.agathon.ch/en/indexable-insert-grinding/DOM_Plus.asp

For more information contact:

Agathon Machine Tools, Inc.

9 Parklawn Drive

Bethel, CT 06801

203-730-8741

mailamt@agathonusa.com

www.agathon.com
