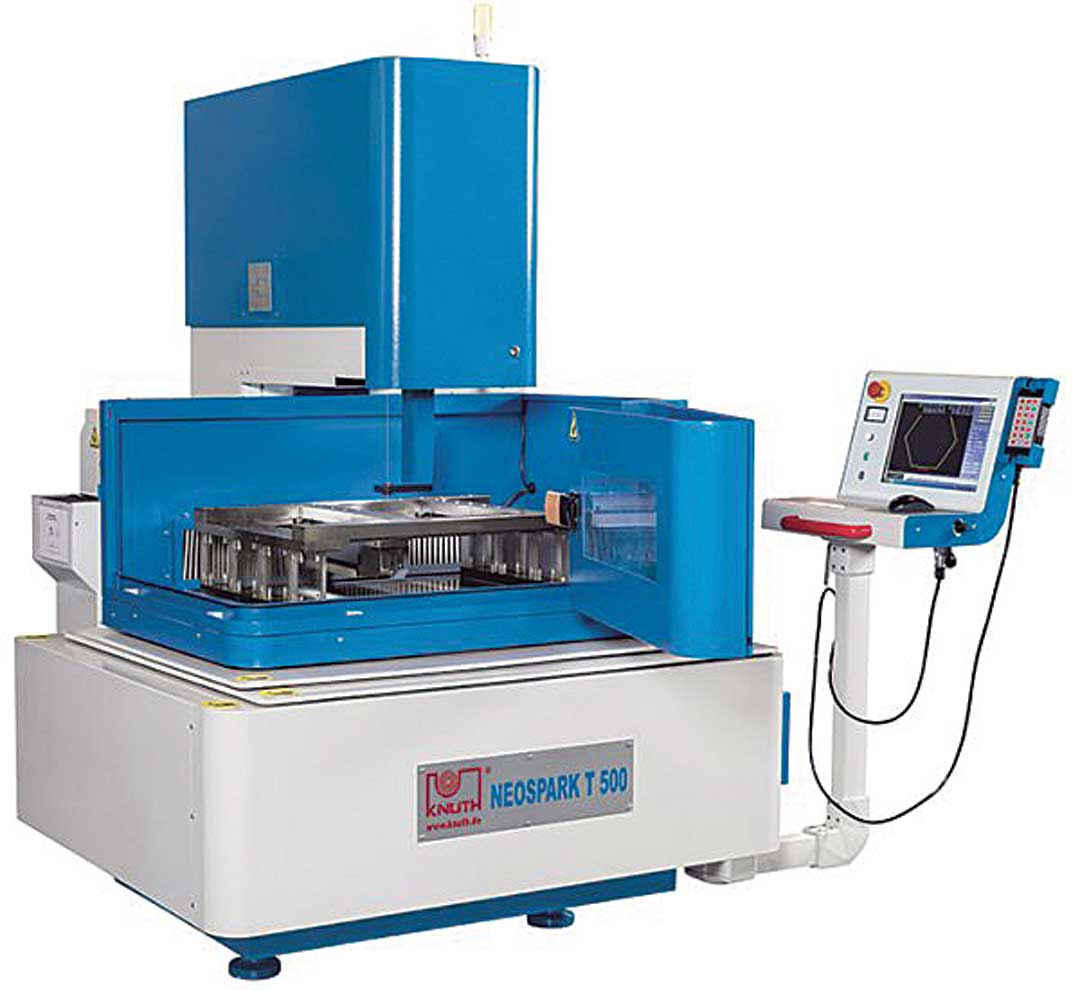

The NeoSpark T 500 from KNUTH Machine Tools USA features precision engineering and an operator-friendly design, offering manufacturers a reliable, efficient solution for high-accuracy wire cutting without unnecessary complexity, the company reported.
"Built for toolrooms, moldmakers, and precision component manufacturers, the NeoSpark T 500 is designed around one guiding principle: making advanced wire cutting accessible, productive, and consistent from day one," said a company spokesperson. "From set-up through to full production, the machine focuses on usability without sacrificing performance."
A key advantage is its intuitive CNC control system with integrated CAD/CAM software. This allows operators to create and modify programs directly at the machine in a straightforward, guided environment. Even users with limited wire EDM experience can quickly become confident in programming and operation, reducing training time and increasing shop floor efficiency.
Productivity is further enhanced by the ability to program the machine while it is still running. This means operators can prepare the next job during machining, stacking workflows more effectively and reducing idle time between operations. In busy production environments, this capability translates into measurable gains in throughput and machine utilization.
"Where the NeoSpark T 500 truly stands out is in its combination of precision, surface finish, and cutting capability," noted the spokesperson. "It delivers excellent repeatability and tight accuracy, ensuring consistent results across short and long production runs. Finished parts benefit from a clean, high-quality surface finish, often reducing or eliminating the need for secondary processing."
From a technical perspective, the machine is engineered for demanding applications. It offers 4-axis machining capability, enabling advanced operations such as taper cutting and complex profile work. The working envelope includes approximately 19.7" x 15.7" (500 mm x 400 mm) of X/Y travel, with a Z-axis travel of 11.8" (300 mm) and U/V travel of ±1.38" (±35 mm). It supports a maximum workpiece weight of approximately 1,323 lbs. (600 kg), making it suitable for heavier, more robust components.
It offers positioning accuracy of up to ±0.0004" (≤0.01 mm) and repeatability of up to ±0.0002" (≤0.005 mm). Surface finish capability reaches as fine as 31.5 µin Ra (0.8 µm Ra), supported by rigid linear guides and precision preloaded ballscrews for stable, repeatable motion.
A central lubrication system simplifies maintenance, integrated diagnostics support process reliability, and a separate dielectric tank with filtration enables stable cutting conditions. A handheld control unit also allows for fast set-up and on-the-fly adjustments directly at the machine.
The NeoSpark T 500 is suited to toolmaking, mold production, precision engineering, and additive manufacturing applications where parts must be separated cleanly from base plates without distortion or damage.
For more information contact:
KNUTH Machine Tools USA
590 Bond St.
Lincolnshire, IL 60069
847-415-3333
info@knuth-usa.com
www.knuth-usa.com
