SMW Electronics, a division of SMW Autoblok, has announced the launch of its new line of grippers to automate key processes for industrial applications including machine tools, material handling, inspection, assembly and more.

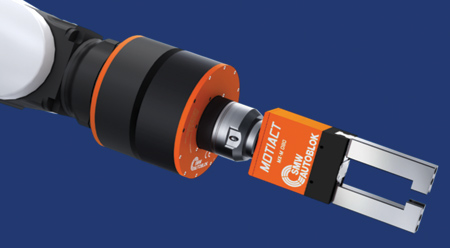

The MOTIACT mechatronic gripper series is designed for performing precise, consistent and accurately monitored gripping operations for moving parts, pallets and chucks in and out of CNC machines and automated work cells. These grippers are equipped with an incremental measuring system for adjusting gripping pressure, linear positioning and speed control. All models feature a Profinet or I/O link interface to provide seamless integration into existing systems.
Operators can change from job-to-job with unattended operation to minimize downtime and increase productivity 24/7. MOTIACT offers unlimited possibilities for sensing and loading/unloading various types and sizes of parts.
The MOTIACT series of mechatronic grippers are suited for any scale of movement tasks. The line of MX-S small parts, MX-M universal and MX-L long-stroke grippers are up to IP67 rated for high durability in any environment. MX-S grippers also come with a high-speed variant, offering greater efficiency and performance and especially suited for automated systems.
The MX-L 520 mechatronic large-stroke gripper provides gripping forces ranging from 10 to 40 kN, a large jaw stroke, pre-positioning and clamping force adjustment. The MX-L 520 offers maximum safety and reliability in the event of a power failure. The large gripper has a maximum stroke per jaw of 99 mm and repeatability at +/- 0.02 mm, providing customers with precision and control to optimize workflows.
All MOTIACT grippers can use the company's inductive coupling system that enables the grippers to rotate a full 360° in both directions, providing greater flexibility and versatility.
The signal transmission between the controller and the gripper is contactless via an integrated interface, which is not affected by the rotation of the handset or by vibration or high speeds. Even over nonmetallic obstacles, data transmission is possible.
The stationary base unit of the coupler can communicate with several mobile units if required (Dynamic Pairing). With the combination of inductive coupler and the MOTIACT grippers, the complete product line is suited for use in end of arm tooling (EOAT).
For more information contact:
SMW Electronics
847-215-0591
www.smw-electronics.com
