Linear Guideway CNC Lathe and Turning Center with Sub-spindle



Kent USA offers its newest linear guideway CNC lathe, the KLT-2000. Also available is our KLR-200SM CNC turning center with sub-spindle. Specifications of the KLT-2000 linear guideway CNC turning center:

  • 3-jaw chuck with 2" bar capacity
  • 5" max turning diameter, 15.7" max turning length
  • 45° slant bed with one-piece Meehanite casting for dampening and stability
  • High-grade C3 precision ball screws and pretension for enhanced precision
  • Auto lubrication system metered check valves and piston distributor

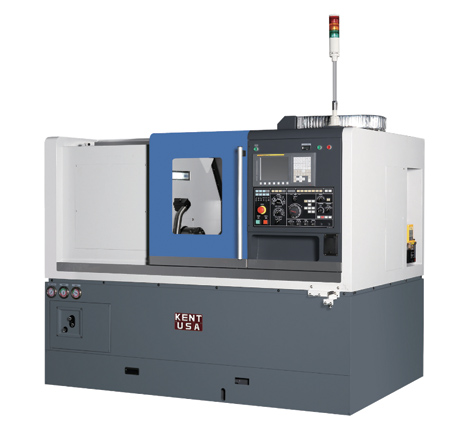

KLT-2000

  • Controller type: FANUC 0i-TF
  • Swing over bed: 520 mm (20.5")
  • Swing over saddle: 320 mm (12.6")
  • Maximum turning diameter: 300 mm (11.8")
  • Maximum turning length: 400 mm (15.7")
  • Bed slant angle (box ways): 45°
  • Spindle nose taper: A2-6
  • Power chuck diameter: 8"
  • Spindle speed: 4,500 RPM
  • Spindle motor power: 15 kW (20 HP)
  • Bar capacity: 51 mm (2")
  • Z-axis travel: 400 mm (15.7")
  • X-axis travel: 170 mm (6.69")
  • Z-axis rapid feedrate: 30 m/min (1,181 IPM)
  • X-axis rapid feedrate: 30 m/min (1,181 IPM)
  • Turret driven type: hydraulic (optional servo)
  • Number of tool stations: 8 (optional 12).
  • For more information contact:

    Kent Industrial USA

    1231 Edinger Ave.

    Tustin, CA 92780

    800-KENT-USA / 714-258-8526

    sales@kentusa.com

    www.kentusa.com
