Modular Pallet System Provides Multiple Top Tooling Mounting Options

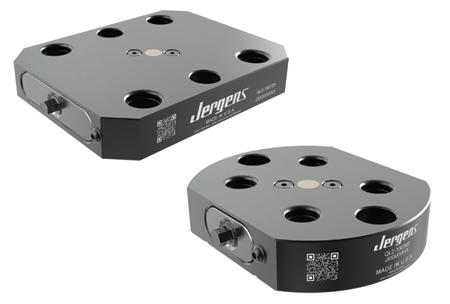

Jergens' Quick-Loc 2 Pallet system features an improved design that engages pull studs inside the receiver, plus a hardened coating for long life and durability. The range is compatible with all existing top tooling, offering repeatability of 0.0003" and providing clamping forces of nearly 14,000 lbs.

Used for fixturing horizontal, vertical and rotary operations, QL2 allows for a wide range of top tooling to be mounted and interchanged on base receivers. Top tooling is located and clamped to a base receiver in a single step when the pull studs are inserted into the receiver and the clamping screw is tightened. The process provides fast changeover while holding critical tolerance.

"We are seeing more and more customers with an assortment of vises and top tooling who need a common platform," said Mike Antos, Jergens Workholding Product Manager. "The Quick-Loc uses pull studs and grid patterns, including 52 mm and 96 mm, for machining of multiple workpieces accommodating different top tooling choices and at the same time provides quick-change."

QL2 features heavy duty, all steel body treated with Jergens Mcoat for enhanced wear resistance and durability even in harsh environments. The system features a floating and opposing clamping wedge assembly (with sealed wedge bodies); an Acme threaded screw for increased strength and long life; O-ring lifters for positive separation of top tooling; and versatile standard mounting options. QL2 is made in the USA and has a Jergens patented design.
