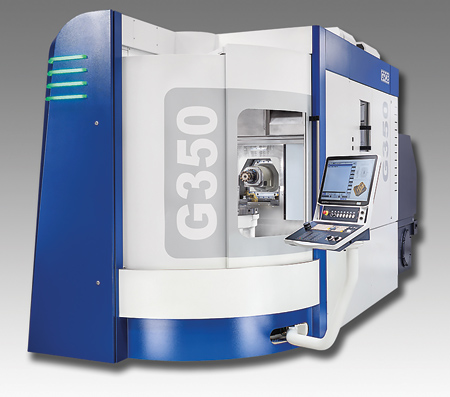

Versatile 5-Axis Universal Machining Center



GROB Systems, Inc. offers the G350 Generation 2 5-Axis Universal Machining Center suited for a wide range of high precision, complex milling applications and materials. The G350 is part of GROB's modular G-series Universal line of machining centers.

The G350 has a compact design providing high visibility-optimized work area access. Three linear and two rotary axes provide operators with 5-axis simultaneous machining and interpolation, with a swivel range of 230° in the A-axis and infinite rotation in the B-axis. The arrangement of the three linear axes minimizes the distance between the guides and the machining point (TCP), providing increased rigidity. Also, a spindle tunnel concept provides greater accessibility to the workpiece, and upside-down machining in a collision-free environment allows the longest possible Z-travel path and optimum chip evacuation.

Tool changes occur outside of the work area, which eliminates chip interference during tool changes. In addition, a tool brush cleans the tool shank prior to the tool being inserted into the spindle, and a coolant flushing system pushes chips out of the work area and through the conveyor. Featuring 117-tool holding capacity and an HSK-A63 tool interface, the GROB G350 is available with either a Siemens 840D sl or HEIDENHAIN iTNC 530 control.

For even higher productivity, the G350 can be partially or fully automated via GROB's line of automation solutions that include pallet changers, pallet storage systems and robot cells. GROB machining centers are made in the USA at the GROB Systems 400,000 sq. ft. full production facility in Ohio.

For more information contact:

GROB Systems, Inc.

Machine Tool Division

1070 Navajo Drive

Bluffton, OH 45817

info.us@grobgroup.com

www.grobgroup.com/en/
