Change-Over in Less than One Minute Without Indicating

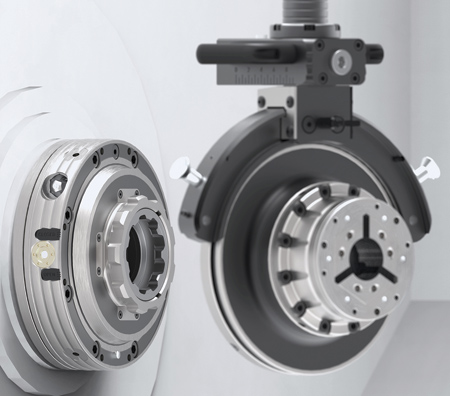

Hainbuch's centroteX S clamping device change-over system is a mini version that has all the centroteX technology with an additional advantage: actuation takes place with just one screw, saving on set-up time. This system was designed to enable a robot to quickly change the clamping device.

With lesser tightening torque than is required with the large variant, the centroteX M, the centroteX S can be assembled more quickly. This is executed with high repeatability and also offers more ergonomic operation. With its diameter of just 52 mm and the small outer diameter of 224 mm, centroteX S is suited for machines with a small workspace.

The machine adapter is permanently mounted on the spindle; the adapter and the adapter counterpart that is equipped with the clamping device can be exchanged within the shortest time possible. The result: shorter set-up times, fast ROI and increased cutting times.

The centroteX systems can be utilized with either a HAINBUCH supplied chuck or the customer's existing chuck.

For more information contact:

HAINBUCH America

W129 N10980 Washington Dr.

Germantown, WI 53022

800-281-5734 / 414-358-9550

sales@hainbuchamerica.com

www.hainbuchamerica.com
