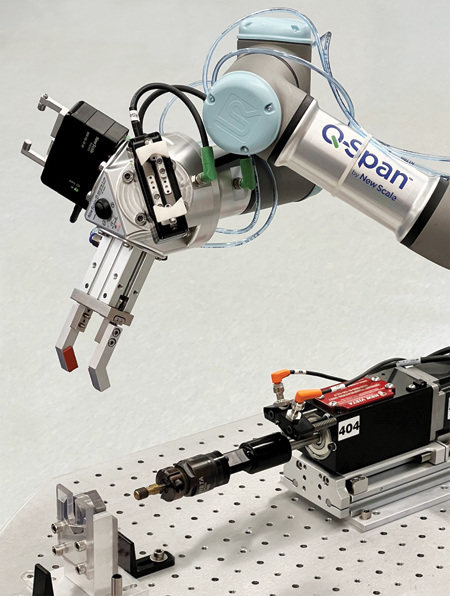

The Q-Span Workstation incorporates existing manual gauges, such as this thread gauge, to automate part handling, gauging and data collection for quality control (QC) teams in high-mix, small-batch manufacturing.
Thread verification is the latest enhancement to New Scale Robotics' Q-Span Automated Gauging System, a do-it-yourself (DIY) robotic automation system for quality teams in high-mix, small-batch manufacturing. The Q-Span Gauging System automates gauging processes by combining existing manual gauges with a collaborative robot (cobot), grippers for part handling, easy-to-use metrology and robot control software and automated data collection.
The robot arm loads parts into a fixture and activates the thread gauge to verify or chase threaded holes or external threads. The Q-Span System can then sort parts based on measured data, such as thread depth of blind holes, or reject parts for defects such as missing, short or improperly formed threads. Systems can be configured for "GO" gauging, "NO GO" gauging, combination gauging or even thread chasing.
Data from all gauges in the Q-Span System-including thread gauges, robotic calipers, LVDT probes, drop gauges, bore gauges, laser micrometers, vision system, 2D telecentric profilers and more-is combined into one convenient output for statistical process control (SPC). Data from any or all gauges can be used in real time for in-process decision making and process monitoring.
The Q-Span Gauging System incorporates a Universal Robots (UR) cobot for flexibility, ease of use and rapid return on investment. The mobile workstation table fits into existing workspaces and work flows. New Scale Robotics incorporates gauges and grippers to meet each customer's initial needs, and users can easily configure the control software themselves for additional parts and processes. No robotics experience or special training is needed.
For more information contact:
New Scale Robotics
121 Victor Heights Parkway
Victor, NY 14564
585-924-4450
nsrsales@newscalerobotics.com
www.newscalerobotics.com
