Two Sides of the High-Volume Output Equation

Although much of current manufacturing practice emphasizes high-mix, low volume production, an acute need remains to efficiently produce medium to high volumes of certain parts. In those situations, the bottom line is minimizing the cost to machine a part.

Machine tool builders offer a variety of systems engineered for cost-efficient production. Maximizing output generally requires those that minimize tool change time and part load/unload time, along with reliable automation that permits minimally tended operation.

Choosing a machining system aimed at medium to high volume output basically initially depends on the size of the raw material and finished parts. Smaller parts generally can be machined from bar stock of 38 mm (1.5") diameter and smaller on Swiss-style CNC machines that use bar loaders to maintain a continuous stream of workpiece material, process workpieces with multiple tools and minimal tool change times, then cut off and drop finished parts with no interruption of machining operations.

Originally developed to produce tiny precise parts for watchmaking, Swiss machines are favored in the machining of long, complex, small diameter parts like those common in the medical equipment, automotive, aerospace and electronics industries. As compared to conventional turning, the Swiss CNC process facilitates a Multi-Tasking/DONE IN ONE type approach for medium to high volume machining.

In a conventional turning center, the workpiece bar advances from the machine's headstock into the work envelope. The tool moves along the length of the workpiece in one direction, retreating and performing more passes for greater depth of cut when necessary.

Conversely, the workpiece bar with a Swiss-style machine advances from the headstock through a guide bushing and moves past a stationery cutting tool or tools. The tools work in close proximity to the guide bushing, eliminating flexing of the workpiece bar and enhancing precision. Cutting can take place in two directions, and end-working and gang tool arrangements minimize tool change time and permit more than one tool to cut at a time. This Multi-Tasking style of machining reduces cycle time over a fixed headstock lathe.

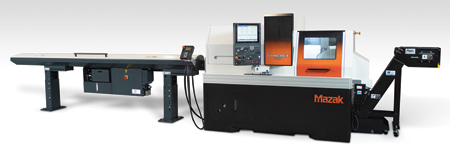

As an example, Mazak's new SYNCREX series of Swiss-style machines feature a 10,000 RPM spindle and different versions handle bar diameters of 20 mm and 25 mm (32 mm and 38 mm). Seven, eight and nine axis designs allow shops to process a comprehensive range of part configurations, and the machines accommodate up to 35 tools as standard, including 22 static and 13 live tools in end working and gang tool arrangements.

Previously, shops may have avoided implementing Swiss-style machines because they perceived the changeover between jobs and programming as too difficult and time consuming. However, current machines have controls and programming capabilities that permit faster set-ups. SYNCREX machines, for instance, feature Mazak's new MAZATROL SmoothST CNC, with Swiss Setup Assist (MSSA) for quick set-ups and Mazak Dynamic Chip Control (MDCC) functionality.

For workpiece material over 1.5" diameter (38 mm), twin-spindle, twin-turret CNC turning centers provide a path to high output. The spindles face each other and are served by upper and lower tool turrets, enabling machining of both the front and back sides of a part and permitting DONE IN ONE part processing. The dual spindles allow two parts to be cut simultaneously, and synchronized rotation delivers fast, high-accuracy part handoffs. Simultaneous first and second operations and balanced cutting or milling are possible. The combination of multiple spindles and turrets produces parts much faster than a basic turret lathe.

Part loading methods differ depending on workpiece size. Bar-fed multispindle lathes are limited as to how fast they can spin heavier, larger diameter bars, so a gantry robot typically will be used to mount larger diameter parts in the machine chuck.

Mazak MULTIPLEX and HYPER QUADREX are examples of twin-spindle, twin turret machines that boost output into the high production range. Both turrets have 12-tool capacity, and the upper turret features 6,000 RPM live tools. MAZATROL Conversational language programming streamlines set-up.

The MULTIPLEX is best for chucker applications, while the HYPER QUADREX is well suited for bar feeder operations. When quipped with systems for loading/unloading, both machines allow for continuous production.

In the case of the MULTIPLEX with its center partition, shops can load/unload either the main or second turning spindle without interruption. With the HYPER QUADREX series machines and bar feeders, a built-in unloader over machine's second spindle provides maximum throughput as do machining strategies such as pinch turning/milling and balanced cutting operations.

In the pursuit of high production numbers, careful coolant and chip management sometimes is overlooked. Machines with a magazine bar feeder can be loaded for a full day's worth of bar stock and run unattended. Large amounts of chips accompany large production volumes, and reliable 24/7 production requires adequate coolant flush to get chips into the machine's chip pan and into a chip conveyor that is matched for the type of chips being produced.

Coolant supply considerations include providing sufficient through spindle coolant, through tool coolant and high-pressure coolant, if needed. An appropriate system of filters must be designed to prevent chips from clogging filters and entering turret coolant lines. High-production scenarios, especially with long continuous cuts, also can produce chip breaking issues.

In response, Mazak developed its Dynamic Chip control for the SYNCREX machines that oscillates a tool axis to help break the chips into smaller, more manageable pieces and avoid formation of long chips and obstructive birds nests.

Choosing a machine tool for high-volume production really boils down to determining the part size, specific application, part volume and what will best suit a user's specific needs. Always, at the top of the list is the cost per part: how fast can a shop deliver parts to a customer, and what is the lowest cost per part. Achieving both is possible with the right machine built for cost-effective high-volume production.

Authored by Mazak Corporation
