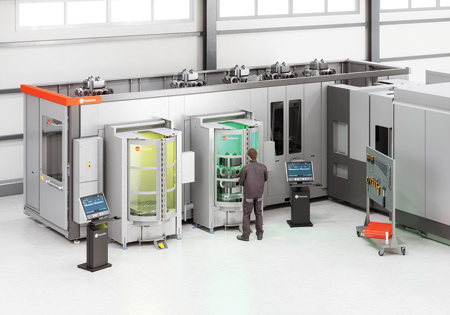

Flexible Pallet Container for Simple Automation of Milling Machines



Fastems offers Version 8 of its Flexible Pallet Container (FPC 8), which provides easy and extendable automation for one to three CNC milling machines with 400 mm to 1,000 mm pallets.

The FPC 8 also includes the FPC-1800, which accommodates 12 to 36 pallets measuring 630 mm to 800 mm in a small 2.4 m x 9.2 m footprint. Featuring a library of hundreds of ready-made machine interfaces for over 100 brands, the FPC 8 integrates with horizontal machining centers and offers machine tool utilization of up to 85%, short set-up times and higher levels of lights-out production capacity. The system can be extended to include up to two additional containers, increasing capacity to 24 or 36 pallets running on two to three machines.

The FPC 8 is controlled by Fastems' Version 8 Manufacturing Management Software (MMS), which offers a single-view user interface with drag-and-drop production orders, EasyRoute feature for bringing new workpieces into production in under 60 seconds, and an advanced automatic Order Generator for recurring orders or maintaining a certain stock level.

The FPC 8 features an optional Basic Loading Station (LSB) with pallet height adjustment, specifically designed for jobs with various fixture heights, to provide personalized work positions for each operator while clamping and unclamping workpieces. For systems with a single fixture height or with just a couple of users, Fastems offers a standard option Compact Loading Station (LSC).

"FPC is one of our most popular systems, which is not a surprise. It is an extremely cost-efficient and easy-to-deploy linear pallet automation solution," said Kalle Peltonen, Vice President of Pallet Automation at Fastems. "It can be extended to multiple machine tools to scale capacity and run unmanned even for the entire weekend. The FPC 8 offers improved space efficiency and better-than-ever ergonomics for operators working on either the hardware or software side. The new size, which can accommodate 1,800 kg payloads in a small space, along with the new easy-use features, meet the needs expressed by many of our customers."

For more information contact:

Fastems, LLC

9850 Windisch Road

West Chester, OH 45069

866-702-0611 / 513-779-4614

service.usa@fastems.com

www.fastems.com/product/fpc
