High-Speed 5-Axis Universal Machining Center

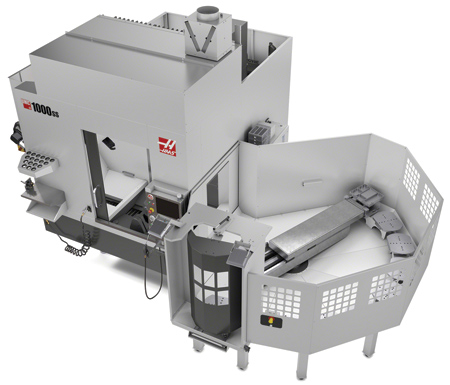

Haas Automation has expanded its line of 5-axis universal machining centers with the UMC-1000SS, a larger-travel, super-speed UMC that offers high performance and speed for 5-sided (3+2) machining and simultaneous 5-axis machining.

The UMC-1000SS is a 5-axis, 40-taper universal machining center with 40" x 25" x 25" (1,016 x 635 x 635 mm) travels, 1,200 IPM (30.5 m/min) rapids and an integrated high-speed, dual-axis trunnion table. The machine is equipped with a 12,000 RPM inline direct-drive spindle, a high-speed 30+1 tool side-mount tool changer and Haas Automation's high-speed machining software.

The UMC-1000SS's high-speed trunnion offers 170 deg/sec feedrates to quickly position parts for 5-side (3+2) machining, or provide simultaneous 5-axis motion for contouring and complex machining. The trunnion provides +120° and -35° of tilt and 360° of rotation for increased tool clearance and large part capacity, and the 25" (635 mm) platter has standard T-slots and a precision pilot bore for fixturing versatility. To simplify job set-up, the UMC-1000SS features Dynamic Work Offsets and Tool Center Point Control, and comes standard with Haas Automation's wireless intuitive probing system.

The machine's 12,000 RPM inline direct-drive spindle is powered by a 30 HP (22.4 kW) vector drive system that yields 90 ft-lbs. (122 Nm) of cutting torque. A 15,000 RPM spindle is also available, in either standard 40-taper or dual-contact HSK-A 63 taper.

For high-volume production, high-mix/low-volume machining and unattended operation, the UMC-1000SS is available with an optional 8-station pallet pool. A selection of high-productivity options is also available, including a 50+1 tool side-mount tool changer, a belt-type chip conveyor, through-spindle coolant and more.

The UMC-1000SS features the easy-to-use Haas Next Generation Control, which is faster, smarter and Industry 4.0-ready, with built-in Ethernet connectivity, available WiFi and standard HaasConnect mobile machine monitoring.

For more information contact:

Haas Automation, Inc.

2800 Sturgis Road

Oxnard, CA 93030

800-331-6746

www.HaasCNC.com
