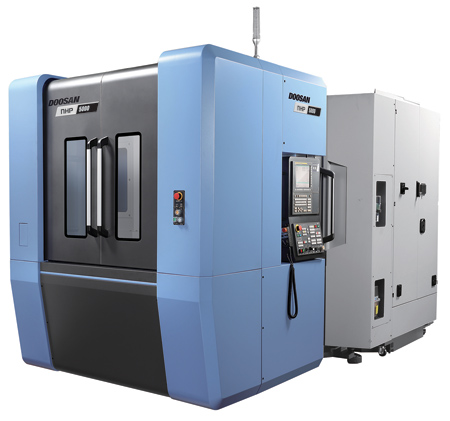

Doosan Machine Tools has introduced its new NHP horizontal machining center (HMC) series, built from the ground up for rapid metal removal rates. Designed to meet the manufacturing demands of industries including automotive and aerospace, the 400 mm pallet NHP 4000 and 500 mm pallet NHP 5000 are configurable for a range of applications.
The NHP machines come standard with a 15,000 RPM spindle with 140 HP and 169 ft-lbs. of torque. For heavy cutting, a high-torque 15,000 RPM spindle with 223 ft-lbs. is available and a 20,000 RPM spindle is in development for customers with higher speed precision applications.
Up to 1G acceleration/deceleration on X-, Y- and Z-axes enhances productivity, delivering productivity increases as high as 25% over the previous model. Ball screw shaft and bearing cooling systems keep the temperature of fast moving axes stable, ensuring precision machining.
The new random access disc-type tool magazine allows high-speed 0.9 second tool-to-tool and 2.3 second chip-to-chip times. In addition to minimizing non-cutting time, this design also reduces vibration, resulting in more stable operation.
In optimizing the construction of the machine, the footprint of the NHP has been reduced by 15% compared to the previous model, yet the machining area has been expanded by 18%. The three-point leveling design makes machine installation and maintenance much more convenient, and the center-through bed evacuates large volumes of chips efficiently.
The pallets can accommodate loads of up to 400 kg (880 lbs.) for the NHP 4000 and up to 500 kg (1,100 lbs.) for the NHP 5000 and both through-pallet and overhead hydraulic fixturing options are available. Additionally, the APC has been refined to achieve a 27% faster indexing time.
"The new NHP Series machines deliver the productivity and precision that manufacturers need to stay competitive," stated Jim Shiner, Director of Sales and Marketing at Doosan Machine Tools America. "From the spindle to the ATC to the APC, we have fine-tuned every component on these HMCs for non-stop performance."
