5-Axis Milling/Turning Machine with Integrated Cryogenics

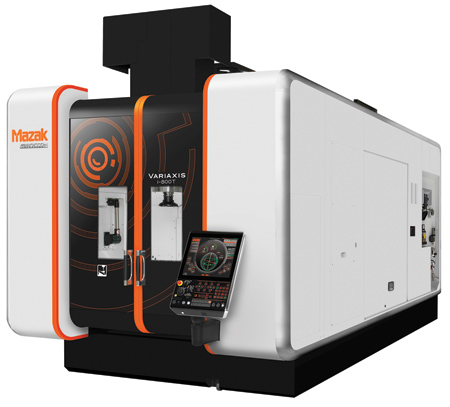

Mazak developed its VARIAXIS i-800T Multitasking Machine to enhance milling operations and boost productivity, especially for those manufacturers in the aerospace industry. The machine - with full 5-axis milling and turning capabilities along with integrated liquid nitrogen cryogenics technology - delivers high processing efficiency for complex aerospace components. It also prevents the detrimental white layers typically generated when machining tough aerospace materials such as titanium, nickel, Invar and other exotics.

The VARIAXIS i-800T features an 80-tool magazine for continuous uninterrupted productivity and a 10,000 RPM, CAT-50 spindle for milling speed and power. The machine's trunnion-style tilting/rotary table and multitasking capability allow users to reduce the inaccuracies that occur when moving parts across multiple workstations.

For single-setup operations, the rigid tilting/rotary table enables the machine to perform turning operations at maximum speeds of 500 RPM and does not interfere with milling operations. Roller gear cams on the swiveling A-axis and a direct-drive motor powering the rotary C-axis help to ensure high-speed and high-accuracy machining performance for workpieces measuring up to 39.37" (1,000 mm) in diameter and 14.76" (374 mm) high.

The machine's MAZATROL SmoothX CNC makes it easy to generate programs for complex parts production. It has several functions that allow it to ensure short machining cycle times, especially in fine increment programs for simultaneous 5-axis operations and free-form die-mold machining.

With added cryogenics, the VARIAXIS i-800T also increases cutting speeds in addition to eliminating part surface white layers. Mazak's cryogenics freeze cutting tools from the inside out and keeps their cutting tips/edges in a frozen state while workpiece materials remain in an ambient one. In doing so, absolutely zero heat or thermal affects transfer into workpieces so that they maintain their base material integrity. The system also helps prevent burrs and contributes to the reduction of overall cost per part because processes to remove white layers become unnecessary.
