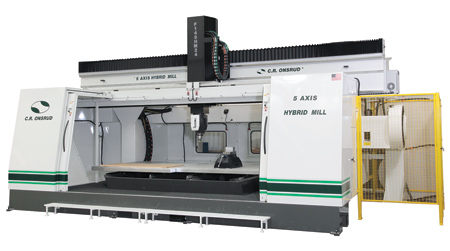

C.R. Onsrud has introduced a new type of machining center that is a hybrid of traditional milling technology with the productivity of high speed machining. This American made 5-axis machining center is configured with dual tables to help eliminate load/unload time. It also has the capability to electronically lock the two tables together for the machining of large parts. The optional Dual Process technology allows independent program machining on each of the two tables simultaneously for maximum flexibility.
The Onsrud Hybrid Mill is offered in two standard configurations: a nominal 8' or 12' bed widths. Available options include dual spindles, high RPM spindles and quick change, large capacity tool changers.
"We repeatedly come upon machinists and fabricators requiring a large work volume who would benefit from the high speed machining of a router, that do not want to incur the expense of a large traditional mill," said Jeff Onsrud, Directory of Sales and Business Development, "Now we have combined them into the Hybrid Mill."
C.R. Onsrud Hybrid Mill HM-Series features 15 HP 24,000 RPM spindles (with 24 HP and 33 HP options); control FANUC 31i or Osai Open; tool management is a 24 position quickchange (with 100+ position changer options); material clamping is by vacuum hold down (with optional fixture plate or T-slot tables; chip handling by chip pan (with optional chip conveyor); other Hybrid Mill options are inkjet part marking, auto tool measurement, robotics integration, continuous C-axis, and linear scale feedback.
C.R. Onsrud F98HM specifications are X-travel of 60", Y-travel of 98", Z-travel of 41"; overall length of 184", overall width of 320", overall height of 169".
Model F148HM specifications are X-travel of 60"/72", Y-travel of 144" and Z-travel of 169", with overall length of 184", overall width of 144" and overall height of 169".
A PDF fact sheet and a functional demonstration video of the Hybrid Mill capabilities can be viewed at this link: cronsrud.com/hybridmill.html.
For more information contact:
C.R. Onsrud
120 Technology Drive
P.O. Box 419
Troutman, NC 28166
800-638-8185 / 704-508-7000
info@cronsrud.com
www.cronsrud.com
