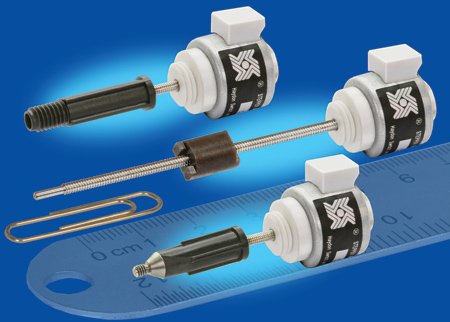

Miniature Stepper Motor Linear Actuator



Haydon Kerk Motion Solutions has expanded its 15000 Series linear actuators with the addition of the smallest linear actuator in its stepper motor line. The linear actuators occupy a minimal 0.6" (15 mm) diameter space and incorporate advanced motion control technology.

15000 Series linear actuators are available in two designs - captive and external linear versions - and in a variety of resolutions, ranging from 0.02 mm to 0.10 mm per step. "The actuators deliver thrust of up to 60 oz (1.7 kg) without compromising long life or cost," said a company spokesperson. "Models also can be micro stepped for even finer resolution. A proprietary manufacturing process that incorporates engineering thermoplastics in the drive nut and a rolled stainless steel lead screw allows the motor to be efficient and durable."

Typical applications include medical equipment, semiconductor handling, valve control, X-Y tables, handheld instruments and more. In addition to standard configurations, Haydon Kerk Motion Solutions can custom design the actuators to meet specific application requirements.

For more information contact:

Haydon Kerk Motion Solutions, Inc.

1500 Meriden Road

Waterbury, CT 06705

800-243-2715

info.haydonkerk@ametek.com

www.haydonkerk.com
