High Speed, High Precision VMC

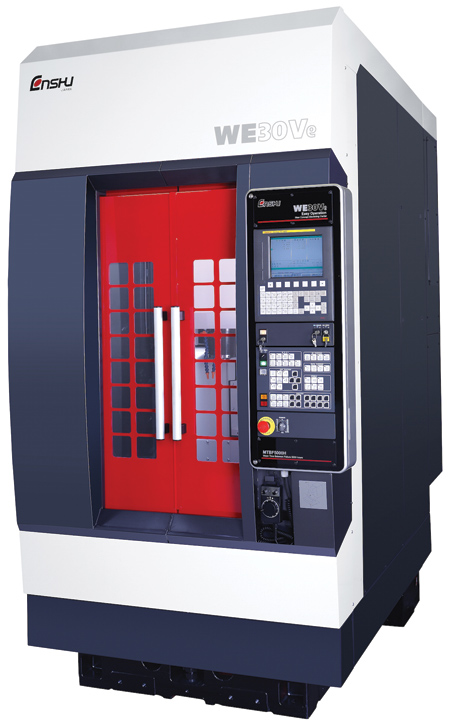

Enshu USA has introduced the WE30Ve Vertical Machining Center to the North American market. With its evenly distributed rigid bridge structure and 12,000 RPM BT30 spindle, the WE30Ve is ideal for the high-speed, high-precision machining of small to medium sized parts.

The WE30Ve features a spindle drive motor with peak output of 17.5 HP and 61 ft. lbs. of torque for aggressive cutting. Coupled with 1,969 IPM rapid feedrates and 394 IPM cutting feedrates, the WE30Ve is designed for enhanced productivity and metal removal rates.

Even though it has a compact footprint of 1,400 mm x 2,520 mm (55.1" x 99.2"), the WE30Ve is built to accommodate heavy fixtures up to 350 kg. The 650 mm x 400 mm (25.6" x 15.7") table work area and 700 mm x 400 mm x 300 mm (27.5" x 15.7" x 11.8") XYZ travels are designed for larger fixtures and longer workpieces. A rotary pallet changer option is available for added productivity.

The Enshu WE30Ve comes standard with a FANUC 0iMD control and 21-tool ATC.

For more information contact:

Mike Germann

National Sales Manager

Enshu USA Corporation

404 E. State Parkway

Schaumburg, IL 60173

847-839-8105

mgermann@enshuusa.com

www.enshuusa.com
