Automated Shop Floor Inspection System
March 1, 2016

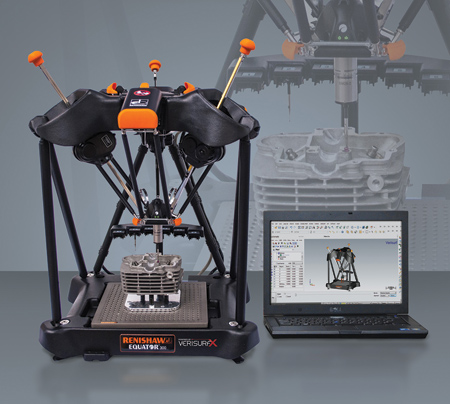

Verisurf Software, Inc. offers the CMM Master, a programmable CMM system. The complete automated shop floor inspection system combines Verisurf software with the Equator comparative gauge for fast, easy and portable inspection.
The lightweight and compact solution runs on single phase power with no need for compressed air supply. Completely portable, CMM Master can easily be configured for use on the shop floor or in the QA lab.
Features include:
- Automated or manual joystick inspection
- Online and offline part programming: Programs can be created offline from CAD or online in teach mode using the CMM joystick
- Multiple part alignment methods: Align parts from simple 3-2-1 feature fitting or iterative best fit
- Full simulation and collision detection: Simulate measurement routines including probe scanning to help prevent potential CMM crashes before they occur
- Flexible reporting options: Automatically generate AS9102 first article inspection report. Inspection data can be exported to other popular presentation formats, including Microsoft Word, PowerPoint and Adobe 3-D PDF viewer.
"We are very excited to offer this complete programmable inspection solution powered by Verisurf Software," said Ernie Husted, President of Verisurf Software, Inc. "In keeping to our commitment of providing open solutions, the same software also enables quality engineers to program and run automated inspection routines on fixed gantry CMMs and other portable devices across the manufacturing enterprise. The goal is to increase efficiency while reducing customer training, data management and support costs."
Verisurf Software is a complete coordinate measurement CAD system with 3-D surface modeling, traditional 2-D drafting and 3-D model associative GD&T. With Verisurf users can open any CAD model and can even use STL files to create CMM inspection plans to automate the inspection of 3-D printed prototypes and additive manufactured parts.
For more information contact:
Verisurf Software, Inc.
4907 E. Landon Dr.
Anaheim, CA 92807
888-713-7201 / 714-970-1683
info@verisurf.com
www.verisurf.com
