Accessories for Battery Operated Marking System
March 1, 2016
MARKATOR, a German manufacturer of marking systems, offers optional accessories designed for work simplification of marking tasks on several kinds of workpieces. Currently there are three new positioning plates for the battery operated dot peen marking system FlyMarker PRO available.

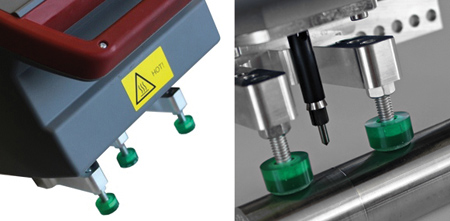

The positioning plate has three point touch supports with rubber coating instead of a flat positioning plate. Two of the point touch supports can be adjusted individually in the X-direction. This accessory can be used if the access for the positioning of the hand-held marking system on the workpiece is limited. The three rubber coated point touch supports are designed to prevent slipping, dampen the vibration that occurs during the marking process and offer a stable operating position. If the access space is very small it is also possible to dismount one of the point touch supports. This positioning plate can also be modified when a special device is needed.
"The upgradeable prism fence system for round and flat parts does have its advantages especially when the marking needs to be done on the face of a workpiece, with equal distances from the edge," said the spokesperson.
"Due to the end stop on the top edge of this positioning plate a safe positioning can be assured," said the spokesperson. With the help of the integrated prism, a precise alignment on round workpieces is easy. The prism is made out of plastic and can be modified for specific workpieces.
The magnetic stop system for FlyMarker PRO can be easily adjusted on the standard positioning plate. It is designed for deep markings on steel.
The magnets on the base of the positioning plate fix the hand-held marking system firmly on the workpiece and prevent from slipping off the workpiece during the marking process. This optional holding device is built for markings that need to be done without horizontal installation surface, for example on vertical surfaces or on the face of a flange.
For more information contact:
Equipment Sales Co.
110 S. Jennings Street
P.O. Box 1259
Sioux City, IA 51102-1259
800-255-6046
info@equipmentsalesco.net
www.equipmentsalesco.net
