Heat Shrink Tube and Barcode Printer

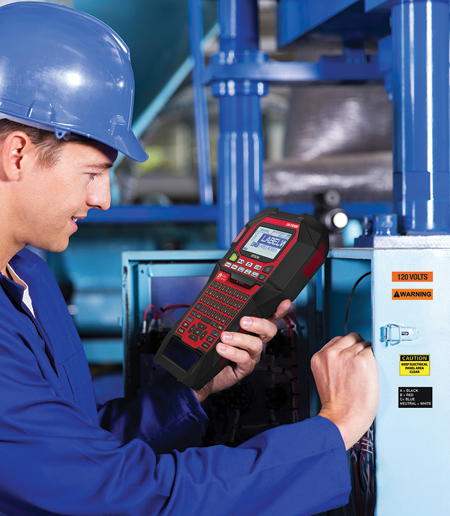

K-Sun Corp. has introduced the next generation of heat-shrink tube and barcode printers-the LW-PX900.

K-Sun and Epson co-developed this portable and PC-compatible thermal transfer printer by creating exclusive smart features based on user feedback. The LW-PX900 is designed for safety and facility professionals for safety/compliance, quality improvement and 5S/lean/visual workplace labeling.

"Features such as Drop-Stop, Pick & Print and Mixed Length plus removable magnetic feet for vertical hands-free operation plus wider widths of heat shrink tube make the LW-PX900 suitable for safety, compliance facility management professionals," said a company spokesperson.

Exclusive smart features include:

  • Drop-Stop holds a label after it is cut so it will not drop out of the printer. This feature works with a single label or with the Pick & Print mode for a series of labels.
  • Pick & Print automatically pauses after printing and cutting the first label in a series and resumes printing/cutting when the label is removed, eliminating the need to continuously type and print labels.
  • Mixed-Length lets the user create a strip of variable-length labels with a half-cut for easy removal and application, reducing tape waste.

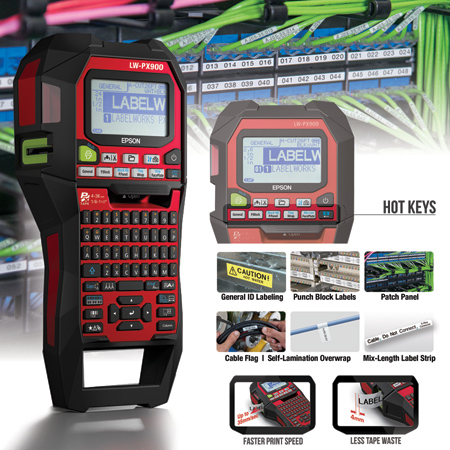

Additional cost- and tape-saving features include a reduced lead margin of 4 mm and adjustable left/right margins down to 1 mm. Industry-specific hot keys are designed to simplify template selection for wire wraps, patch panels, face plates and punch blocks.

The LW-PX900's 360 DPI, high speed printing produces detailed single, continuous and die-cut labels. Other features include alphanumeric sequencing, auto-repeat, auto-cut, 13 languages and a 99-file printer memory.

PC-based models include the Label Editor Professional software with easy data import capabilities, 15 bar codes (including QR), 1,000+ industrial symbol library and nine industry catalogs with hundreds of label/sign templates.

The LW-PX900 uses PX Tape, which has more tape per cartridge and is available in hundreds of types, sizes and colors, including magnetic, fluorescent, photoluminescent, heat shrink tubing and more.

For more information contact:

K-Sun Corporation

370 SMC Drive

P.O. Box 309

Somerset, WI 54025

800-622-6312

info@ksun.com

www.ksun.com
