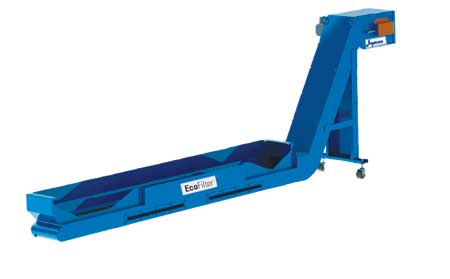

The EcoFilter Conveyor is a conveyor and filtration system designed for entry-level and mid-priced turning and machining centers. It utilizes a two-stage metal chip removal and coolant filtration design. Primary large chip removal is done with a hinged steel belt conveyor. In a secondary process, fines are separated from the coolant via flow through a wedgewire filter cell. "In our patent-pending, self-cleaning design, brushes wipe these fines from the surface of the wedgewire where they can then flow to the bottom of the conveyor," said a company spokesperson. "The conveyor belt's cleats scrape them around and up the incline for discharge."
The EcoFilter Conveyor offers the following features, according to the company:
- Pump, tooling and coolant life is greatly improved
- No consumables mean an environmentally friendly system
- Single drive design provides reduced energy consumption
- Less chip migration to the coolant tank means less tank cleanout and production downtime.
"The EcoFilter Conveyor has been well-received by our customers," said the spokesperson. "One customer uses a vertical machining center to do high-volume machining of aluminum parts. They had a serious chip migration problem where a high majority of the chips would migrate to the coolant supply tank. Tank baskets and screens needed cleaning multiple times a day, and weekly machine shutdowns were necessary to clean out the coolant tank which was virtually filled with chips. Machine supply pumps were fouling and failing due to chip migration into the pump inlets. Filters had to be put on the inlets which, when blinded off, caused the pumps to cavitate, leading to coolant foaming. The system would often back up, and coolant would flood the shop floor. Now with Jorgensen's EcoFilter Conveyor in place, they have enjoyed uninterrupted 24-hour, five-days-per-week production. The wedgewire filter built into the conveyor has stopped the fines from getting into the tank and the coolant is no longer foaming up."
The customer said, "This new EcoFilter Conveyor has by far exceeded my expectations. The most problematic machine tool in our shop is now the most hassle free."
For more information contact:
Jorgensen Conveyors, Inc.
10303 N. Baehr Rd.
Mequon, WI 53092
262-242-3089
info@jorgensenconveyor.com
www.jorgensenconveyors.com/ecofilter
