Gator 5C Collet Chucks
August 1, 2015

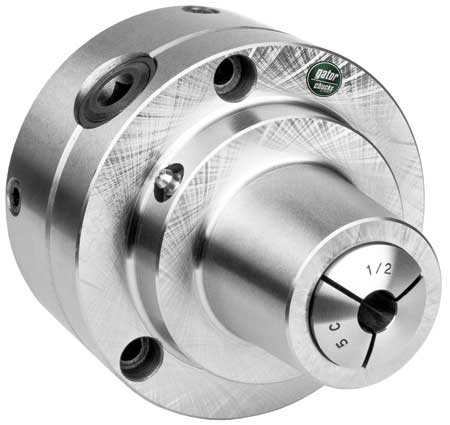

Global Tooling Solutions has added adjustable 5C collet chucks to the Gator line. Typically used on grinding machines and lathes, the 5C collet chucks are designed for facing, turning, milling and boring operations.
Gator 5C collet chucks are produced with a two-pinion design and feature high quality forged steel bodies designed to provide high rigidity and accurate clamping of a workpiece or a cutting tool. This simple key operated process is engineered to allow for quick 5C collet changeover times. Scrolls, pinions and chuck bodies are fully hardened and ground for high accuracy and long life. All chucks are precisely balanced, allowing them to be run up to 6,000 RPM.
Gator 5C collet chucks are designed to work with fully finished adapter plates. Micro adjustable screws that engage with these special adapter plates provide fine adjustment capabilities and allow the user to zero in the accuracy of the chuck, providing 0.0004" T.I.R. repeatability, according to the company. Adapter plates covering A and D spindle types are available from stock.
Gator chucks are produced in Global Tooling Solutions' ISO and CE certified factory.
For more information contact:
Global Tooling Solutions LLC
P.O. Box 701
Walpole, MA 02081
800-985-5390
sales@gts-tools.com
www.gts-tools.com
