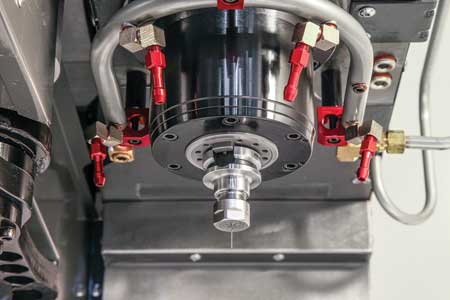

The DT-1 drill/tap center from Haas Automation, Inc., is now available with a 20,000 RPM inline direct-drive spindle, giving customers the ability to run higher feedrates for small tools and high-speed machining operations.
The optional 20K spindle is designed for applications that require high spindle speeds. According to the company, it is powerful enough to mill hard-to-machine materials. It allows rigid tapping to 5,000 RPM, with up to four times retract speed to reduce cycle times. The spindle is powered by a 15 HP vector drive system that yields 16 ft-lbs. of cutting torque. The motor is coupled directly to the spindle to reduce heat, increase power transmission and provide improved surface finishes.
The DT-1 features a 20" x 16" x 15.5" work cube and 26" x 15" T-slot table within a compact footprint that allows multiple machines to be placed side-by-side. The machine provides cutting feedrates to 1,200 IPM for high-speed milling, and the 20+1 side-mount tool changer swaps tools quickly to reduce non-cutting time. High-speed 2,400 IPM rapids combine with high acceleration rates to shorten cycle times and increase throughput.
For efficient chip removal, the DT-1 features steeply sloped internal sheet metal. Optional twin chip augers transport chips to exit at the rear of the machine, allowing multiple machines to be placed close together. A 45-gallon flood coolant system is standard, with options for a programmable coolant nozzle and high-pressure through-spindle coolant systems.
For more information contact:
Haas Automation, Inc.
2800 Sturgis Road
Oxnard, CA 93030
800-331-6746
www.HaasCNC.com
