Large Through-Hole Chuck and Base Plate for Table Applications
February 1, 2016

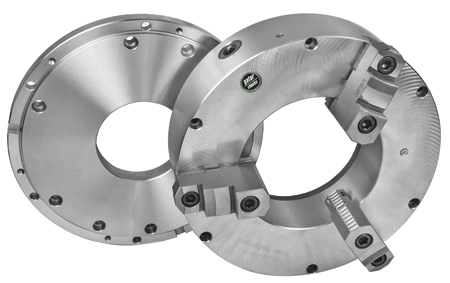

Gator has introduced a front mount 16" large through-hole scroll chuck and fully finished base plate. This chuck and baseplate combination are built to provide a solution for a variety of large through-hole indexers, rotary tables, VTL lathe tables and welding fixtures. "We worked closely with a leading rotary table manufacturer, and came up with this solution for large through-hole table applications," said a company spokesperson.
"This three-pinion, low profile, forged steel body design, with 8.66 inch through hole and large gripping capacity make this chuck an excellent choice for gripping pipe, flanges or any other material with large diameters, and requiring high centering accuracy with quick setups," said the spokesperson.
Chucks are produced to DIN/ANSI standards and are provided with the standard length master and hard top jaws. Special extended master jaws can be supplied on customer request. Steel base plates are provided with the set of T-nuts and bolts allowing the chuck to be mounted on 3, 4, 6 & 8 T-slot round tables. All chuck parts and jaw guide ways are heat treated and precisely ground.
This 16" front mount, large through-hole chuck is an addition to Gator's PSL Chuck family which includes 16", 20", 26" and 32" back mount options.
For more information contact:
Global Tooling Solutions LLC
P.O Box 701
Walpole, MA 02081
800-985-5390
sales@gts-tools.com
www.gts-tools.com
