Reduce Cycle Time with Superimposed Machining

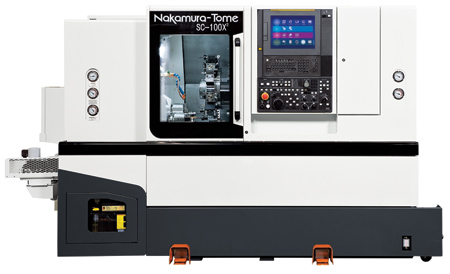

Methods Machine Tools, Inc. recently released the Nakamura-Tome SC-100X2. The twin-turret multitasking machine utilizes two tools on either side of the upper turret for superimposed machining, making it a logical solution for Swiss-style parts greater than 25 mm in diameter.

"Superimposed machining lets shops take on complex contracts and more jobs-all while completing them in a fraction of the time-compared to other machining methods," said a company spokesperson. "With simultaneous machining capability, machine shops can reduce their cycle times and ultimately reduce costs."

Operators can use the upper and lower turret simultaneously, turning the SC-100X2 into a true twin spindle/twin turret machine, providing even more ways to solve complex machining problems.

"There are many ways to machine complex parts on the SC-100X2, but at the end of the day the math is remarkably simple: the more tools in the cut, the less time it takes to complete a job," said Sergio Tondato, Methods' Sr. Director, Nakamura-Tome Product Line. "No matter what type of job you put on this machine, the results are the same: lower costs per piece."

The SC-100X2 automatically unloads the workpiece once complete, minimizing manual intervention and downtime. When the machine completes a cycle, the parts catcher grips the part and places it on a conveyor, removing it from the machining environment.

Nakamura-Tome's user-friendly software allows operators to program superimposed and multiturret jobs as easily as single-turret operations, all accessible from a familiar FANUC 0i-TF Plus control. The software package also includes features such as Nakamura's NT-Nurse system, NT-Smart Sign, NT-Navigator, oscillation turning and thermal compensation artificial intelligence for better accuracy from start to finish.

Key specifications

  • Max. turning diameter: 7.67"
  • Y-axis travel: +/- 1.57"
  • Max. turning length: 15.75"
  • Milling turret horsepower: 9.4
  • Max. bar diameter: 2"
  • Max. spindle speed (both spindles): 6,000 RPM.

For more information contact:

Methods Machine Tools, Inc.

65 Union Avenue

Sudbury, MA 01776

877-MMT-4CNC (877-668-4262)

www.methodsmachine.com
