EMUGE-FRANKEN N.A. Introduces Line of Ring Gages



EMUGE Ring Gages accompany the comprehensive line of EMUGE Fixed Limit Thread Gages, consisting of Go/No-Go Plug Gages and Thread Depth Plug Gages that inspect the pitch diameter and functional thread for internal-threaded components.

EMUGE-FRANKEN N.A., a manufacturer of high-performance taps, thread mills, drills, end mills and other rotary tools, has expanded its thread gaging solutions to include a line of thread ring gages to complement its thread gage offering. The line comprises UNC and UNF Go and No-Go ring gages, in addition to metric and metric fine Go and No-Go ring gages, a total of 152 new gages.

"Our expanded line of accurate, high quality gaging solutions is ideal for addressing today's challenging thread gaging applications," said Bob Adamiak, Thread Gages Product Manager, EMUGE-FRANKEN N.A.

The new EMUGE Ring Gages accompany the comprehensive line of EMUGE Fixed Limit Thread Gages, consisting of Go/No-Go Plug Gages and Thread Depth Plug Gages that inspect the pitch diameter and functional thread for internal-threaded components.

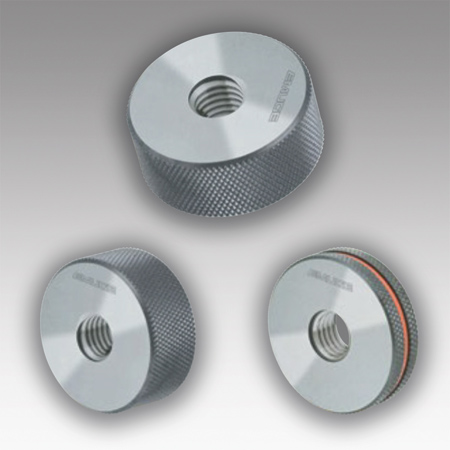

EMUGE Go and No-Go Ring Gages are manufactured with hardened tool steel for durability and feature a fully knurled circumference for maximum gripping ability and safety. No-Go gages are clearly marked with a red ring. UNC and UNF gages have a 2A tolerance. UNC gages are available in 19 sizes from #2-56 to 2-4 1/2 and UNF gages are available in 19 sizes from #0-80 to 1 1/2-12. Metric and metric fine gages have a 6g tolerance. Metric gages are available in 19 sizes from M2x.4 to M68x6 and metric fine gages are available in 19 sizes from M8x1 to M48x1. Additional sizes are also available upon request and all gages (UNC, UNF, metric and metric fine) are furnished with a short form gage certificate at no additional charge. Long form certificates are also available upon request.

For additional information and a brochure on the full line of EMUGE Thread Gaging Solutions, visit www.emuge.com/media-resources/brochures-catalogs.

For more information contact:

EMUGE-FRANKEN N.A.

1800 Century Drive

West Boylston, MA 01583-2121

800-323-3013

www.emuge.com
