Hand-Held Metrology Grade 3D Scanner

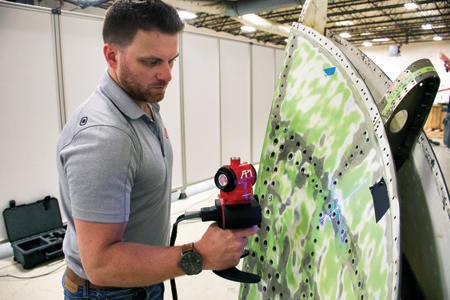

API iScan3D in action

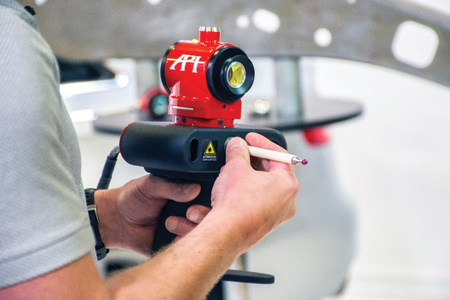

iScan3D offers improved ergonomics in scanning and tactile measurement applications.

Automated Precision, Inc. (API) offers a thoroughly reengineered version of iScan3D hand-held metrology grade 3D scanner. iScan3D is the third-generation version of API's metrology-grade scanner. It is designed for portable shop floor dimensional inspection and scanning markets to provide accurate measurements and point-cloud generation from a single-handed ergonomic sensor.

iScan3D, with integral process controller, connects with API's Radian Six Degrees of Freedom (6DoF) Laser Tracker to accurately monitor scanner position and deliver high accuracy measuring and scanning.

"iScan3D completely negates user inconveniences associated with articulating arm scanners: operator fatigue, arm gymnastics, part access issues and limited measuring ranges," said a company spokesperson. "iScan3D combines tactile and scanning measurements, giving users the freedom to measure wherever and whenever, regardless of part size and feature locations, in a single set-up."

With iScan3D, the articulating arm problem of operator-to-operator variability in part inspection data is avoided. Manufacturing applications targeted by iScan3D system include shop floor production measurement, prototype part inspection and validation, high accuracy reverse engineering, large body assemblies, flush and gap, mold and die cavities, surface contours, fixture inspections and alignment.

iScan3D features:

  • Blue crossed laser lines to allow scanning in any direction with ease and flexibility.
  • Fast measurements with metrology accuracy-200,000 points per second with 70µ point spacing and 50µ accuracy.
  • Integrated tactile probing for CMM style measurement of internal and external features.
  • Software flexibility-iScan3D can be used with all of the common point cloud metrology software.

For more information contact:

API

15000 Johns Hopkins Drive

Rockville, MD 20850

757-530-7008

www.apimetrology.com
