Ergonomic Lift & Turn Optimizes Palletizing Applications
March 1, 2022

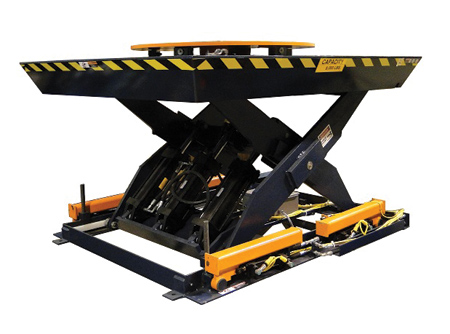

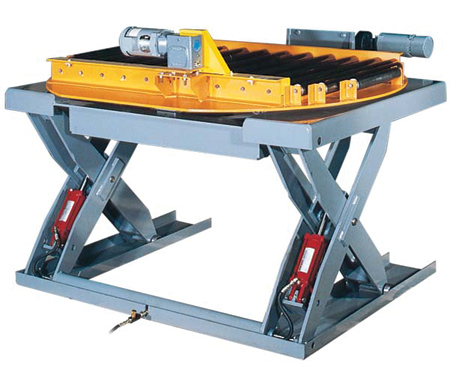

Uni-Craft Corp. combines the versatility of scissor lifts with the ability to effortlessly rotate and access heavy products for an ergonomic lifting and positioning solution. Designed for use in palletizing applications, the Lift and Turn is a scissor lift with a manual turntable that can handle up to 4,000-lb. loads and is capable of turning 360°.
The Lift and Turn's travel distance ranges up to 72", and has multiple portability options. The turntable platform itself can be rectangular, square or circular depending on the application need. Strong and durable, the Lift and Turn features solid steel one-piece arm assemblies that range from 1/2" to 3/4" thick, depending on travel, load capacity and portability selections.
The low-profile design minimizes overall lift height, enabling easy and direct loading without the cost or need of a pit installation. Full 360° load access increases productivity by reducing unnecessary walking or reaching, and allows operators closer contact with the platform to add or remove pallet loads. Ergonomically lifting and positioning heavy loads to manageable heights improves assembly control and optimizes worker safety.
The Lift and Turn seamlessly accommodates palletizing, assembly or welding applications found in the automotive, steel or manufacturing industries.
For more information contact:
Uni-Craft Corp.
P.O. Box 471
Alpena, MI 49707
989-354-1375
info@uni-craftcorp.com
www.uni-craftcorp.com
