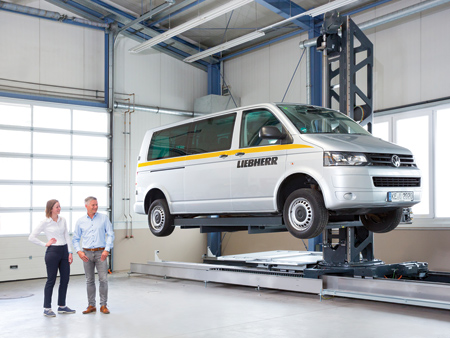

With the launch of the PHS 3000 Allround pallet handling system, Liebherr's PHS family is now complete. The new system enables the handling of large and heavy parts weighing up to three tons.
The PHS 3000 Allround automatically supplies machine tools with machine pallets. A flexible combination of standardized modules enables users to uniquely configure their systems and allow for machine tools, set-up stations, pallet storage and further modules to be added for expansion and scalability in all directions.
In the new weight class, large and heavy parts weighing up to three tons of transport load can be automated-for example, valves for pipelines, axle components for heavy commercial vehicles or structural parts for the aerospace industry.
For the PHS 3000 Allround, a particularly robust telescoping stroke was developed. This also retains the advantage of front access: the operator is able to access the machine at all times through a door between the PHS and the machine. This ensures minimal downtime and high productivity, since the system continues to run when decoupling individual machines for manual activities or maintenance work. The shelf magazine on the PHS 3000 Allround also offers pallet storage for up to three levels.
The intelligent software makes automation profitable even with low batch sizes: "The cell control follows the material flow and manages orders so intelligently that even small batch sizes can be elegantly conveyed through the system," explained Agnes Pröbstl, Product Manager of Automation Systems at Liebherr.
The possibility of set-up during the machining process and unmanned manufacturing in multi-shift operation increases the machine runtime by up to 90% and reduces the unit costs by up to 40%; overall, increasing the capacity by two and a half times. Because of the higher machine investment when machining large components, the automated handling is particularly profitable for parts with a high volume or weight. A pallet handling automation system increases the manufacturing capacity without additional machines, and can therefore cut investment costs.
For more information contact:
Liebherr Gear Technology, Inc.
1465 Woodland Drive
Saline, MI 48176-1259
734-429-7225
info.lgt@liebherr.com
www.liebherr.com
