Conserve Liquids in Non-Pressurized Systems

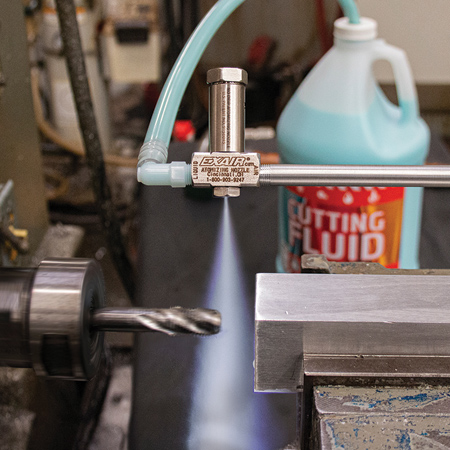

EXAIR's new 1/8 NPT No Drip Siphon Fed Air Atomizing Spray Nozzles provide consistent and even flow of non-pressurized liquid for applications like marking, lubricating, rinsing, cooling, quenching, wetting (moistening), dust control and humidification.

The design of this Siphon Fed spray nozzle allows for the absence of liquid pressure. It uses gravity fed liquids or lifted liquids from a siphon height of 36" (91 cm) with the added benefit of positively stopping liquid flow when compressed air is shut off.

"Post spray drips waste precious resources such as expensive coatings, chemicals or water," said a company spokesperson. "Unwanted drips can ruin product function on sealing or mating surfaces as well as ruin the appearance of painted or coated finishes. EXAIR's No Drip Atomizing Nozzles are ideal for these situations where no post-spray drip is permissible. When the compressed air supply is shut off, the no drip nozzle positively seals off the flow of liquid-eliminating the possibility of drips."

EXAIR's No Drip Siphon Fed Atomizing Nozzles are available in round and flat fan liquid patterns. The volume of liquid flow depends on either the gravity or suction height coupled with air pressure. All of EXAIR's spray nozzles, which include nozzles for pressure fed applications, are composed of 303 stainless steel for durability and corrosion resistance. They are available with 1/8, 1/4 or 1/2 NPT inlets with a variety of styles, flow rates and liquid patterns. Mounting brackets are also available for easy installation in specific areas on product lines. They are CE compliant and conflict mineral free.
