ATC for Dual-Drive Press Brakes
December 1, 2020

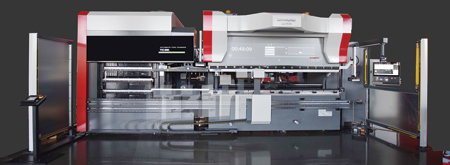

MC Machinery Systems offers a high-capacity automatic tool changer (ATC) for its BH series of dual-drive press brakes. The ATC is designed to increase production levels and utilization rates while reducing set-up time, especially in high-mix, low-volume environments.
The ATC allows for fully automated tool set-up and removal, freeing up the operator to perform other tasks. Its available 107.3' x 170.6' storage capacity allows for tooling variation ranging from high-runner V-dies to specialized hemming or offset tools. Up to 2" V-die openings and 19.7" lengths can be placed with the single, large-capacity tool manipulator with the added functionality of pick & place for small tool sections for set-ups that do not require the full set-up to be removed. The manipulator is also equipped with a tool and bed cleaner that runs automatically during tool changes.
The ATC is engineered for operators of all experience levels. Programs can be created offline using DiamondBend software at the control or imported from other MOS controlled press brakes. Further support for operators is available with MC Machinery's VIDERE operator support system for real-time bending information, sequences and automatic tool changes.
"More companies are looking at adding tool changers to their forming departments," said David Bray, Product Manager, Press Brakes. "This trend has gained momentum due to a perfect storm of industry and market factors, such as updating their laser processing equipment or finding qualified people to staff their forming departments. Metalworking companies are seeking ways to add efficiency to their blanking departments. The BH Dual Drive ATC offers the largest storage with the most flexibility, making it the conclusive solution for customers looking for improved production and increased efficiency."
Machines equipped with the ATC are not limited to the tools in the changer's storage. The machine can be used as a stand-alone press brake or automated system, allowing for the flexibility for one-off jobs.
For more information contact:
MC Machinery Systems, Inc.
85 NW Point Blvd.
Elk Grove Village, IL 60007
630-616-5920
sales@mcmachinery.com
www.mcmachinery.com
