Four-Megapixel High-Speed Camera

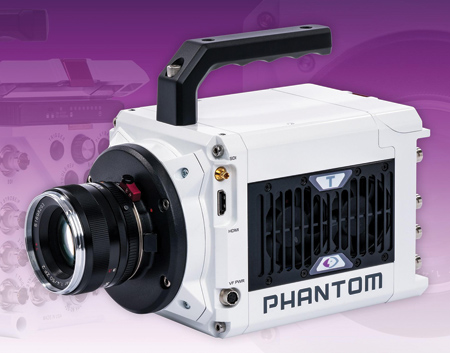

"Vision Research has introduced the Phantom T1340, a high-resolution camera that captures images up to 13 Gpx/second, doubling the capabilities of other 4 megapixel cameras in its class," said a company spokesperson. "The 2048 x 1952 low-noise sensor, combined with a compact form factor, is ideal for demanding measurement applications such as object tracking, flow visualization, microscopy and modern imaging techniques such as Digital Image Correlation (DIC)." A binned mode is included to provide higher throughput and a sensitivity boost at 1 megapixel and below.

Workflow features of the T1340, which are suitable for applications in outdoor range environments, include Phantom CineMag V compatibility for a fast and secure workflow. The CineMag also supports direct recording for long duration events. A 10 Gb ethernet option is available for fast file downloads, enabling users to continue shooting with reduced downtime in any environment. The on-camera controls, video outputs and CineMag compatibility enable a standalone operation.

"The Phantom T-Series is our new platform that brings higher throughput, larger RAM capacity and CineMag compatibility to a compact form factor," said Toni Lucatorto, Product Manager. "This combination extends the possibilities for many industrial high-speed imaging applications."

Key specifications of the Phantom T1340 Camera:

  • Custom 12-bit CMOS sensor
  • 2048 x 1952 at 3,270 frames per second (FPS)
  • 1920 x 1080 at 6,160 FPS
  • Maximum frame rate: 113,510 FPS at reduced resolution
  • Native ISO: mono 16,000D (25,000D binned); color 4,000D (6,400D binned)
  • Available with 36 GB, 72 GB or 144 GB RAM
  • Compact size: 5" x 5" x 8".

For more information contact:

Vision Research, Inc.

100 Dey Road

Wayne, NJ 07470

973-696-4500

www.phantomhighspeed.com
