Software Updated with File Translators, Measurement and Visualization Features
February 1, 2020
Kubotek3D offers its 1.2 release of the Kubotek K-Compare line of CAD file validation and K-Display MCAD visualization software. This release provides updates to CATIA and NX CAD file translators and several new functions for each product.
Updated CAD Translators
Reading other CAD/CAM software across both 1.2 Kubotek software programs has been updated with the latest versions of two major CAD file formats:
- Siemens NX 1847, 1851
- CATIA R29 (V5-6R2019).
K-Display View 1.2 also adds new support for Building Information Modeling (BIM) data stored in the Industry Foundation Classes (IFC) file format:
K-Display View Features Added
The 1.2 release adds two new measurement functions to K-Display View that are important for engineering or production cost estimation. The first new function analyzes 3D models of plastic parts to find areas which are difficult or impossible to create with a simple mold strategy. The other new measurement function supports quick overall measurements of the envelope of selected 3D models by wrapping them with temporary solids. A third new function adds a simple cutting plane function that allows users to easily visualize the interior sections of complex parts.
K-Compare Validate Features Added

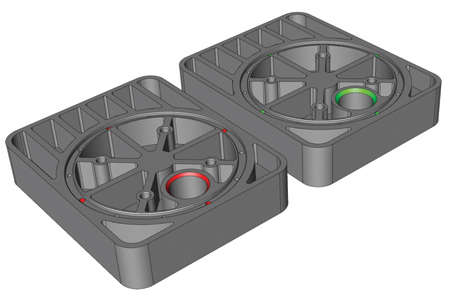

The PMI annotation (3D feature control frames) comparison in K-Compare Validate 1.2 has received a significant upgrade to include testing of the associative connection to model faces and semantic style testing of the tolerance type and values within control frame. The ability to quickly measure the angle between edges of a model has also been added. A final new feature allows users comparing a large batch of files to easily line up corresponding pairs of files into horizontal rows to simplify visualization.
Free trials of Kubotek software are available.
