KAAST bandsaws come in sizes ranging from 9"- 60" (230 mm to 1,500 mm). Larger capacity saws generally have larger motors, providing more torque and allowing the operator to cut faster, not just larger, and to increase the speed at which the blade can get through the material. But as size increases, so do prices.
All bandsaws sold by KAAST are at least semi-automatic, meaning the head movement is controlled by a hydraulic piston, and can be raised and lowered by the operator activating the up/down switch. To run the machine, the operator tightens material in the vise and pushes the Start button. The saw will make the cut, then lift the head back to the upper position. Semi-automatic saws are a good fit if you need to make a few cuts in a length of material.
Fully automatic KAAST bandsaws have a hydraulic piston to raise and lower the head and are either equipped with driven rollers in the vise or a shuttle vise to advance the material. Most fully automatic saws also feature a digital piece counter.
KAAST offers an assortment of horizontal mitering bandsaws, with options for a swiveling head or a swiveling vise, each combined with either a scissor type or dual column set-up and offered in fully or semi-automatic.

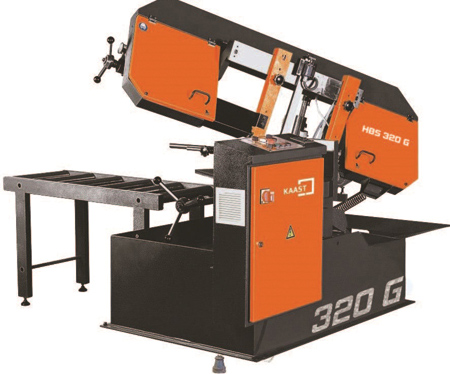

The KAAST HBS horizontal bandsaws have a wide array of options available. The hydraulic top clamp for the HBS line-up allows the operator to easily, with minimal tack-welding of the ends or strapping, cut pieces of bundled material by applying pressure in two directions simultaneously to ensure a clean and complete cut.
"If you plan to run your saw continuously, a chip conveyor will ensure your chip chute does not overflow, reducing downtime, saving money," said a KAAST spokesperson. The chip auger especially helps to move larger, heavier chips (e.g. cutting iron with a large tooth blade), which might otherwise sink to the bottom of the chute and not be flushed to the coolant collector.
Roller tables, as the name implies, feature multiple cylinders which roll as material is moved across them. While they cannot initiate movement, the rollers greatly ease material movement.
Motor driven roller conveyors are recommended for use in conjunction with hydraulic top clamps and shuttle vises in fully automatic horizontal bandsaws. Using a small but powerful motor, the tables help the shuttle vise to move heavy materials into position to be cut. The combination of shuttle vise, hydraulic top clamp and motor driven roller conveyor results in a machine made for mass production with minimal hands-on time.
For more information contact:
KAAST Machine Tools, Inc.
3 Merion Terrace
Aldan, PA 19018
224-216-8886
www.kaast-usa.com
