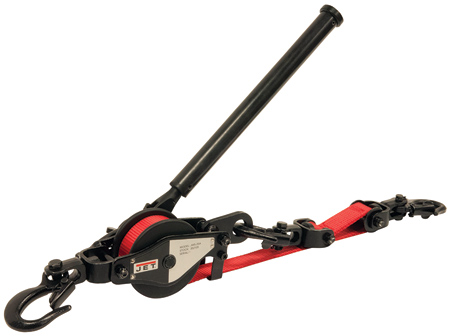

Web Strap Hoists



"JET's new JWS Series provide safety, dependability and long service life for a wide range of lifting, pulling and holding operations," said a company spokesperson. "They are precision-engineered and constructed of premium materials to ensure reliability, boost productivity and minimize downtime."

JET JWS Series have numerous uses in plant maintenance, public utilities, construction, automotive garages, farming and other industries. Some typical applications include releasing tension of power lines, holding materials together, installing fences, pulling pipe and straightening poles.

The new JET web strap hoists feature an open housing design that allows quick cleaning and fast daily inspections. Durable components, including corrosion-resistant stainless steel springs, bronze bushings, drum shafts, self-lubricating bearings and drop-forged steel hooks, are designed to provide safe, reliable service and durability in demanding work environments.

JET JWS hoists also are designed with an isolated ratcheting gear, oversized strap guide and bottom block assembly to guide the web strap smoothly onto the drum and prevents it from binding. A friction brake and double interlocking pawls allow for precise, micro inching when lowering loads.

The fiberglass handles of JWS hoists are built for rugged duty, and are tested and certified to withstand 15kV/1 ft. for one minute. The hoists' 1:1 gear ratio requires minimal handle effort and provides up to 1-1/2" lift per 45° handle stroke.

The hoists' large, drop-forged, alloy steel swivel hooks rotate 360° and are equipped with steel safety latches.

JET JWS Series comply with ANSI/ASTME B30.21 standards.

"JET JWS Series Web Strap hoists are backed by a lifetime warranty, as well as JET RED Assurance, a dependable service and support guarantee with more than 550 service centers nationwide," said a company spokesperson.

JET JWS come in single or double pull models with capacities of 1 or 1-1/2 Tons.

For more information contact:

JET Tools North America

427 New Sanford Road

La Vergne, TN 37086

800-274-6848

www.jettools.com
