High Precision Jig Grinding Machines
March 1, 2017
Supertec Jig Grinder
Supertec Jig Grinder

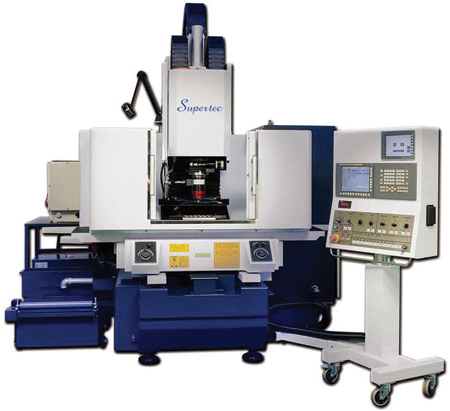

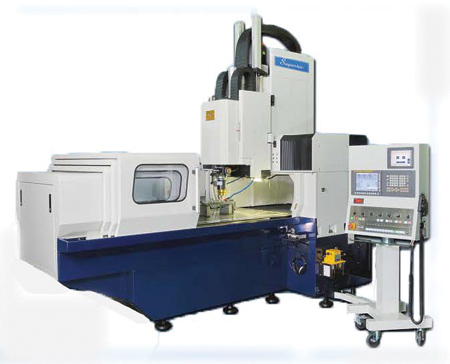

Supertec has introduced three sizes of jig grinders covering a full range of capabilities. Models offered include the JG-510M (20" x 12" x 4" x 13" XYZW), the JG-1270CM (47" x 27" x 4" x 16") and the JG-1010G (39" x 39" x 10" x 16") double column style.
The JG-510CM model has an X- and Y-axis positioning accuracy of ±0.000060" and a planetary grinding roundness of ≤.00004". The Z-axis is driven by a high-speed linear motor for faster acceleration and greater repeatability.
All models utilize a FANUC 31i-B control for 4-axis simultaneous movement with 12 grinding modes, including user-friendly automatic pecking macros.
A KSK brand German-made hydrostatic spindle with up to 60,000 RPM is used for greater accuracy and reliability. Air spindles for speeds up to 150,000 RPM are available based on application.
For more information contact:
Supertec Machinery Inc.
6435 Alondra Blvd.
Paramount, CA 90723
562-220-1675
info@supertecusa.com
www.supertecusa.com
