X-Ray and CT System for Advanced Industrial Quality Control

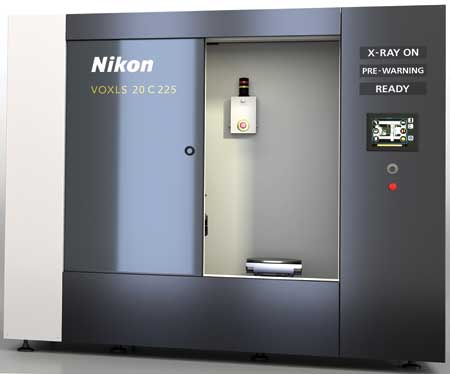

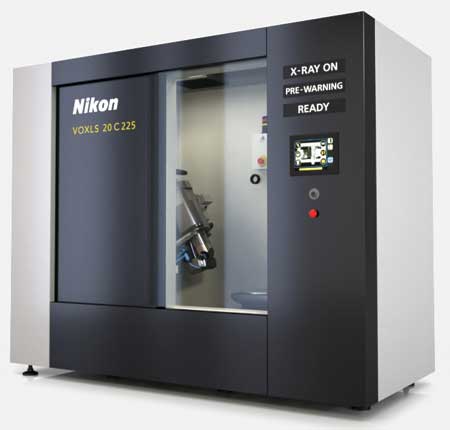

Nikon Corporation has launched the VOXLS 20 C 225, the latest addition to its VOXLS X-ray CT product lineup. This system is based on the principles of the company's VOXLS 30 and 40 Series systems while offering maximum capability in a space-efficient footprint, providing greater value per voxel.

The VOXLS 20 C 225 offers the largest CT scanning envelope in a system that fits through a standard double door, allowing for flexible integration to almost any quality control laboratories and production environments.

The new system features Nikon's metrology-grade platform with a granite base, rigid steel manipulator towers and high-accuracy encoders and motors. These engineering choices help ensure precision, repeatability and reliability while delivering increased X-ray and CT data quality.

Key features include:

  • CT inspection envelope: Offers an industry-leading inspection volume of 555 mm (Dia.) x 759 mm (H) in a compact footprint of 2,451 mm (L) x 1,173 mm (D).

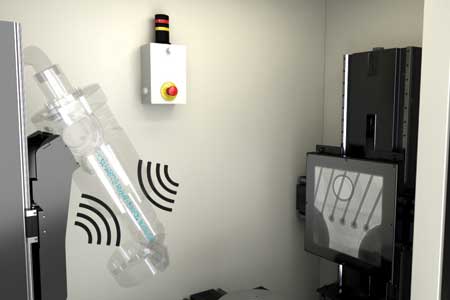

  • Dual-source configuration: Features a motorized dual-source set-up with a 225 kV reflection target and 160 kV transmission target, allowing users to choose the optimal source for their application at the push of a button. This enables automated and fast switchover between the reflection target (for higher productivity due to increased X-ray flux) and transmission target (for achieving the best possible resolution).
  • Source optimization: De-skills the process of setting up the filament for optimal performance, simplifies the filament change process and provides longer filament lifetime

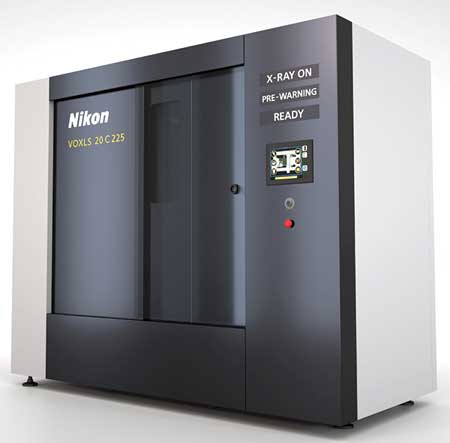

  • Enhanced usability: Incorporates features like Filter Changer, motorized door that opens in fewer than 4 seconds and large viewing window for improved interior visibility

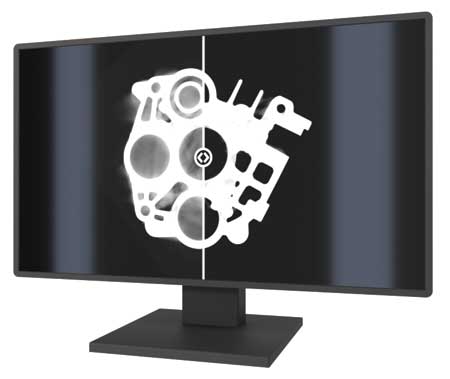

  • Versatile scan capabilities: Supports Motorized FID and advanced scan modes including Panel Shift CT, Tilted CT and Pixel Split CT, enabling a wide range of inspection techniques for diverse applications.

For more information contact:

Nikon Metrology, Inc.

12701 Grand River Ave.

Brighton, MI 48116

810-220-4360

sales.nm-us@nikon.com

www.nikonmetrology.com
