Production Turning Solution



DMG MORI has incorporated its experience in production turning as well as the individual requirements of users into the development of the new NZ series.

The result is a highly modular platform with two bed sizes that offers customers maximum flexibility and productivity: bar and chuck machining are part of the modular system, as is the option to install two, three-as in the case of the NZ TRE-or four units with B-axis and a TWIN spindle in the Z-axis.

Additionally, DMG MORI offers several automation solutions for the NZ platform. Available in two bed sizes, the new NZ platform serves a wide range of components. The short version is designed for workpieces up to 740 mm in length, while the long version accommodates components up to 1,290 mm. Chuck machining is possible in both cases up to a diameter of o120 mm, and for bar machining the passage is o65 mm. Including the 3.30 m long bar feeder, the NZ requires only 17.8 sq. m of floor space. Stability and precision in machining are made possible by the symmetrical architecture bed with high thermal stability and equal chip removal performance in all positions.

On the control side, the NZ platform is equipped with a 19" DMG MORI SLIMline touch panel and FANUC 30iB.

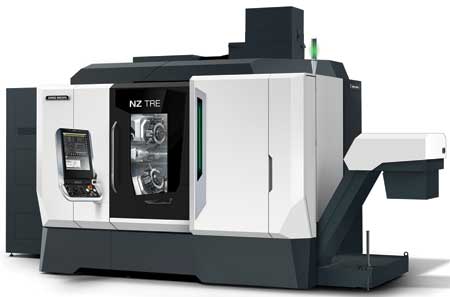

The NZ TRE is equipped with three units with B-axis and a TWIN spindle in the Z-axis.

For more information contact:

DMG MORI - Americas Headquarters

2400 Huntington Blvd.

Hoffman Estates, IL 60192

847-593-5400

Service Hotline:

855-DMG-MORI (364-6674)

us.dmgmori.com
