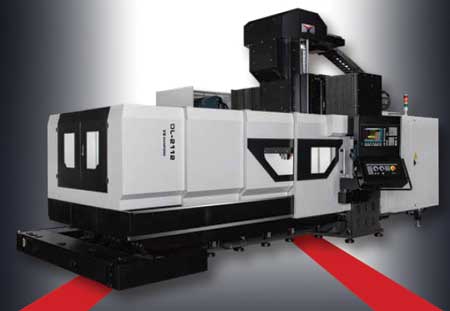

DL Series Double Column Machining Centers

Manford Machinery Co. offers its DL Series double column machining centers, including the DL-2112, DL-3116, DL-3120 and DL-5232.

DL-2112 features:

• X-axis travel: 1,500/2,100/3,100/4,100 mm
• Y-axis travel: 1,220 mm
• Z-axis travel: 800 mm
• Distance between columns: 1,400 mm.

DL-3116 features:

• X-axis travel: 2,100/3,100/4,100 mm
• Y-axis travel: 1,620 mm
• Z-axis travel: 800 mm (opt. 1,020 mm)
• Distance between columns: 1,700 mm.

DL-3120 features:

• X-axis travel: 3,100/4,100 mm
• Y-axis travel: 2,020 mm
• Z-axis travel: 800 mm (opt. 1,020 mm)
• Distance between columns: 2,100 mm.

DL-5232 features:

• X-axis travel: 5,200 mm
• Y-axis travel: 3,200 mm
• Z-axis travel: 800 mm (opt. 1,000/1,200 mm)
• Distance between columns: 3,400 mm.

The DL Series machines feature a low center of gravity table design, offering easy accessibility for workpiece loading. The large span between X-axis slide ways reduces geometric error on the table.

Machining with a milling head equipped with a vertical/horizontal ATC system can enable quick tool change and increase productivity. Manford double column machining centers adopt a chain type automatic tool changer, which is side-mounted on the machine base. The independent structure eliminates the potential of contamination from chips and coolant.

For more information contact:

Manford Machinery Co., Ltd.

8F-1, No. 168, Keji Rd.

Dali Dist.

Taichung City, Taiwan 412025

Tel: +886 4 2491 5553

manford@manford.com.tw

www.manford.com.tw

Dealer Wanted
